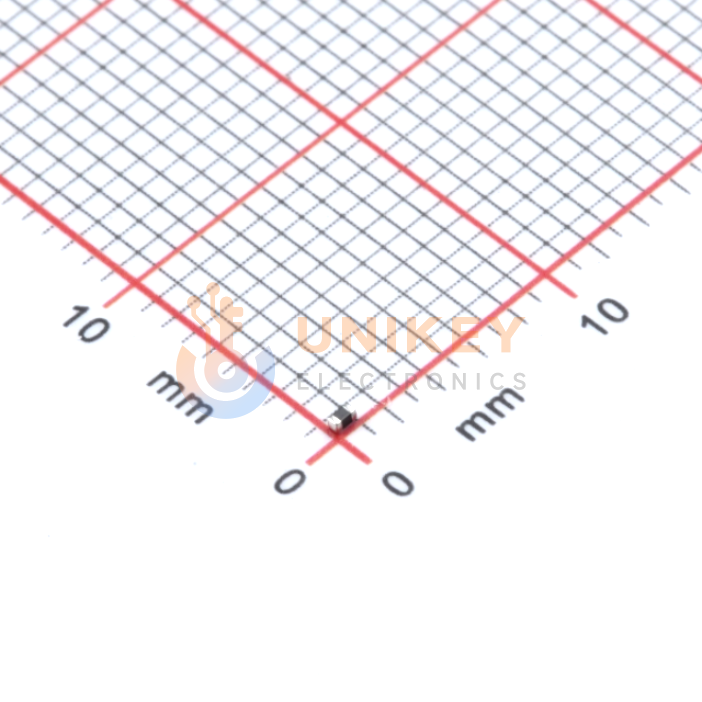

Murata BLM15AG601SN1D image
Images are for reference only

BLM15AG601SN1D

300mA 600Ω@100MHz 520mΩ 0402 SMD mount 1mm*550μm*550μm

Other Names:BLM15AG601SN1D

Manufacturer:Murata

Manufacturer Part:BLM15AG601SN1D

Email Document
ECAD Model:

In Stock

130,331 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0226

Ext. Price (USD)

$0.11

Total price$0.11
MOQ5Mult5SPQ10,000DC2609+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0226
$0.11
50
$0.0153
$0.76
150
$0.0115
$1.72
500
$0.0103
$5.15
1,500
$0.0093
$13.95
4,000
$0.0084
$33.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
600 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
300mA
DC Resistance (DCR) (Max)
520mOhm
Height (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.022" W (1.00mm x 0.55mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM15AG
Filter Type
-
Mounting Type
Surface Mount
Ratings
-
Rid
584454
Series
EMIFIL®, BLM15

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The relevant datasheet for Murata Manufacturing BLM15AG601SN1D is Murata’s reference specification for the BLM15_SN chip ferrite bead series. It includes the exact BLM15AG601SN1D ordering line in the rating section, covering impedance at 100MHz, rated current, DC resistance, operating temperature, packaging, solder mounting, reflow soldering conditions, and RoHS marking information. Buyers and engineers should use the Murata document that explicitly lists BLM15AG601SN1D before approving the part for procurement or design release.
