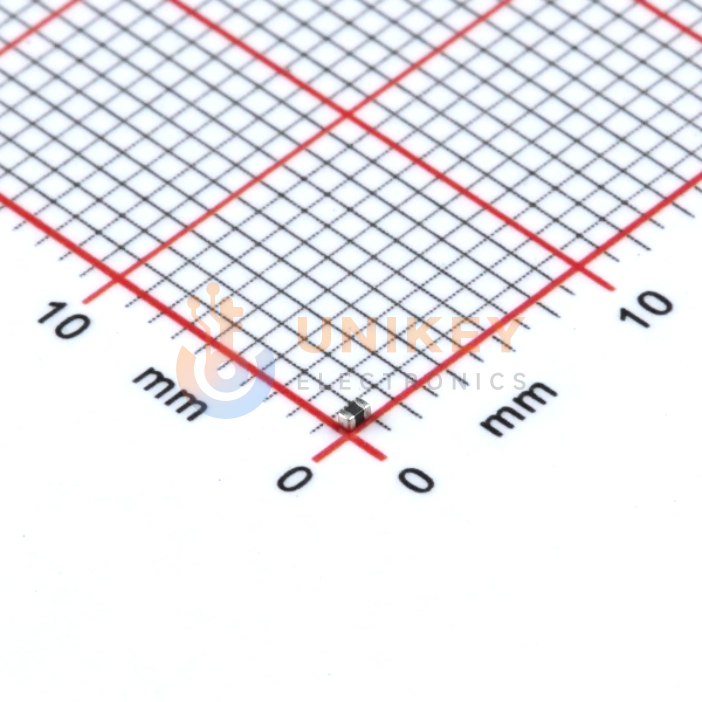

Images are for reference only
BLM15AG100SN1D
Ferrite Bead 1A 10Ω@100MHz 25mΩ 0402 SMD 1mm × 550μm × 550μm
Other Names:BLM15AG100SN1D
Manufacturer:Murata
Manufacturer Part:BLM15AG100SN1D
Datasheet:Murata BLM15AG100SN1D Datasheet (PDF)
Email Document
In Stock
324,243 In stock, ready to ship
Quantity
50
Unit Price (USD)
$0.0053
Ext. Price (USD)
$0.26
Total price$0.26
MOQ50Mult50SPQ10,000DC2618+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0053
$0.00
10,000
$0.0043
$43.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Impedance @ Frequency | 10 Ohms @ 100 MHz |
| Operating Temperature | -55°C ~ 125°C |
| Number of Lines | 1 |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | 25mOhm |
| Height (Max) | 0.022" (0.55mm) |
| Package/Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | BLM15AG |
| Filter Type | - |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 1948283 |
| Series | EMIFIL®, BLM15 |
Frequently Asked Questions (FAQs)
The Murata Manufacturing BLM15AG100SN1D can be evaluated for circuits where a chip ferrite bead with 5~15Ω impedance at 100MHz and 10Ω typical impedance is required. The datasheet also notes that the resistance element becomes dominant at high frequencies. For selection, check the 1000mA rated current, DC resistance limits, -55°C to +125°C operating range, PCB thermal conditions, and surge-current limits before use in the final circuit.
