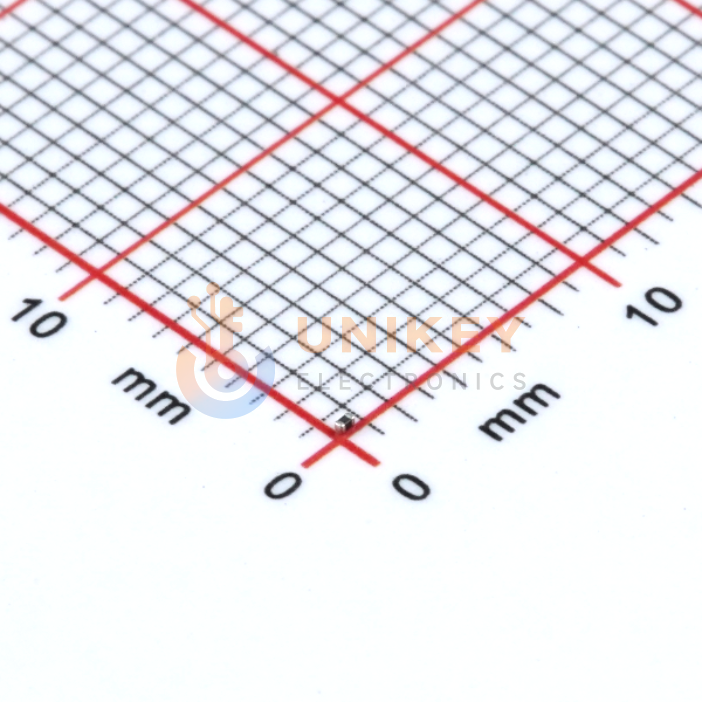

Murata BLM03AX601SN1D image
Images are for reference only

BLM03AX601SN1D

Ferrite Bead 250mA 600Ω@100MHz 850mΩ 0201 SMD 600μm × 300μm × 330μm

Other Names:BLM03AX601SN1D

Manufacturer:Murata

Manufacturer Part:BLM03AX601SN1D

Email Document
ECAD Model:

In Stock

24,717 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0188

Ext. Price (USD)

$0.94

Total price$0.94
MOQ50Mult5SPQ15,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0188
$0.94
500
$0.0158
$7.90
1,500
$0.0142
$21.30
15,000
$0.013
$195.00
30,000
$0.0122
$366.00
45,000
$0.0117
$526.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Impedance @ Frequency
600 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
Number of Lines
1
Current Rating (Max)
250mA
DC Resistance (DCR) (Max)
850mOhm
Height (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
BLM03AX
Filter Type
-
Mounting Type
Surface Mount
Ratings
-
Series
EMIFIL®, BLM03

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing BLM03AX601SN1D, the documented impedance rating is 600±25% at 100MHz under the standard testing condition. The datasheet’s electrical performance section specifies impedance measurement at 100MHz±1MHz using suitable RF impedance measurement equipment and fixture. The documentation also notes that the resistance element becomes dominant at high frequencies, so frequency-dependent behavior should be evaluated against the manufacturer impedance characteristics and the actual circuit conditions rather than treated as a fixed value across all frequencies.
