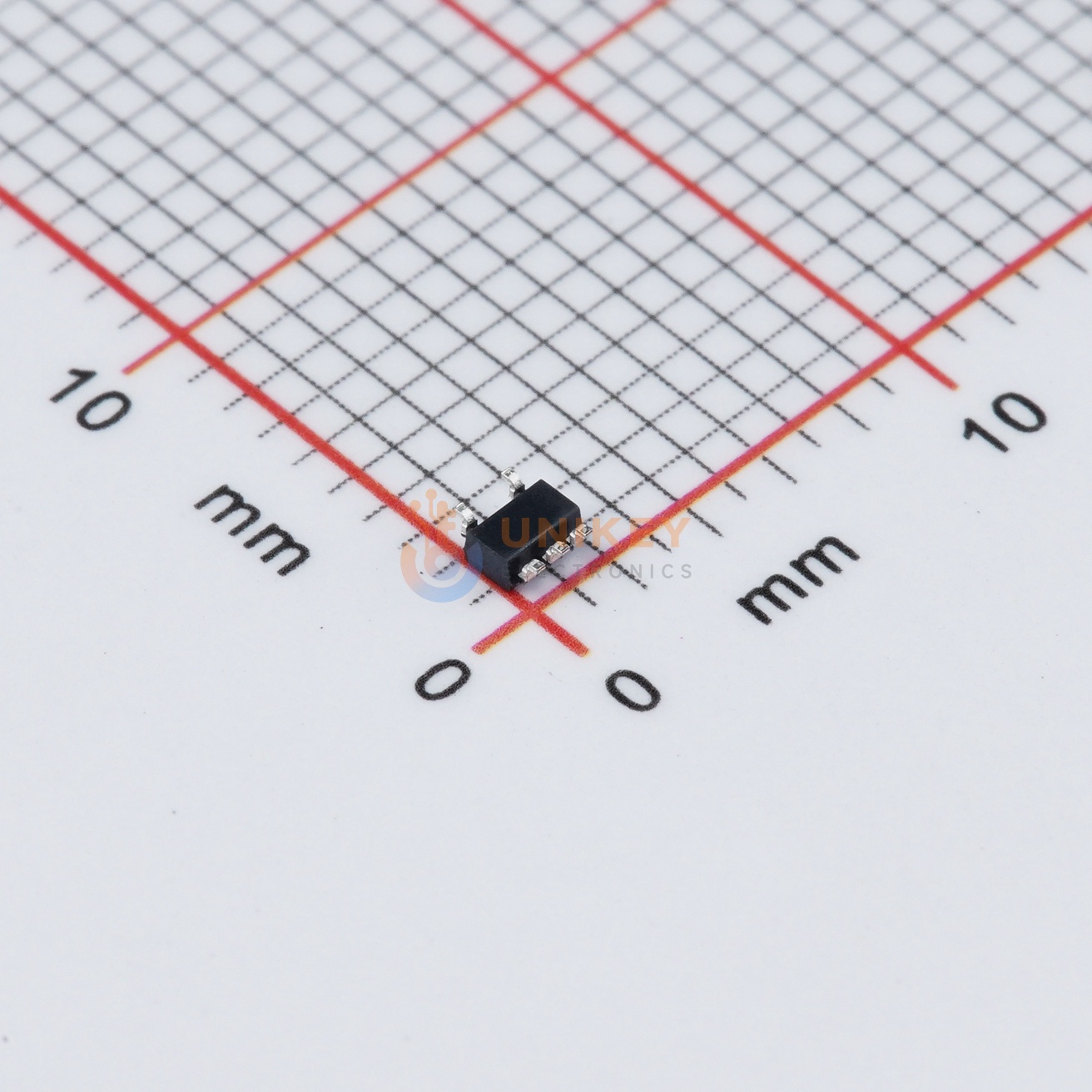

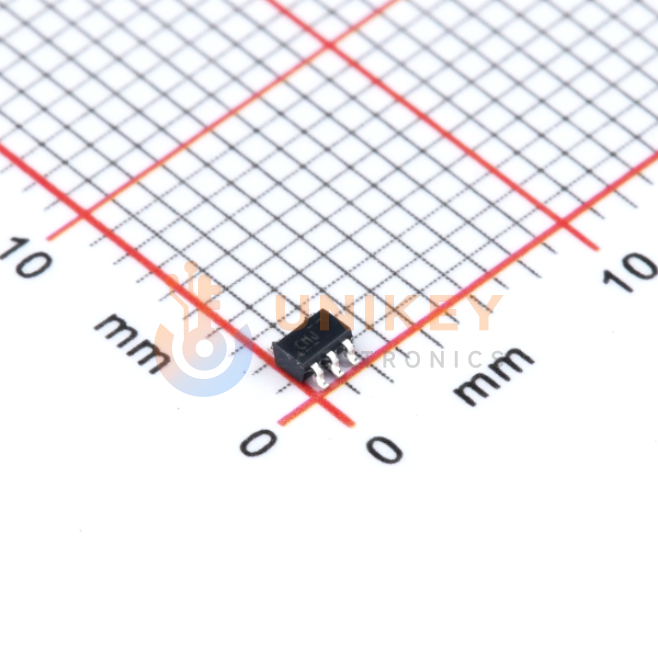

Images are for reference only
SN74LVC1G125DCKR
Texas Instruments Buffer & Line Driver, SC-70 Package, 5-Pin, 1-Ch
Other Names:SN74LVC1G125DCKR
more
SN74LVC1G125DCKR
SN74LVC1G125DCKR
Manufacturer:Texas Instruments
Manufacturer Part:SN74LVC1G125DCKR
Email Document
In Stock
1,535 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.1518
Ext. Price (USD)
$0.75
Total price$0.75
MOQ5Mult1SPQ3,000DC2630+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1518
$0.75
50
$0.1191
$5.95
150
$0.1051
$15.76
500
$0.0879
$43.95
3,000
$0.073
$219.00
6,000
$0.0683
$409.80
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Input Type | - |
| Logic Type | Buffer, Non-Inverting |
| Number of Bits per Element | 1 |
| Number of Elements | 1 |
| Package/Case | 5-TSSOP, SC-70-5, SOT-353 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | 74LVC1G125 |
| Mounting Type | Surface Mount |
| Rid | 385721 |
| Series | 74LVC |
| Supplier Device Package | SC-70-5 |
Frequently Asked Questions (FAQs)
The Texas Instruments SN74LVC1G125DCKR is specified in the TI datasheet addendum as an SC70 package type, using the DCK package designation with 5 pins. The product specifications identify the supplier device package as SC-70-5 for surface-mount assembly. For layout and sourcing checks, the datasheet provides the DCK0005A mechanical outline, land-pattern example, stencil guidance, and tape-and-reel details for 3000-piece packaging.
