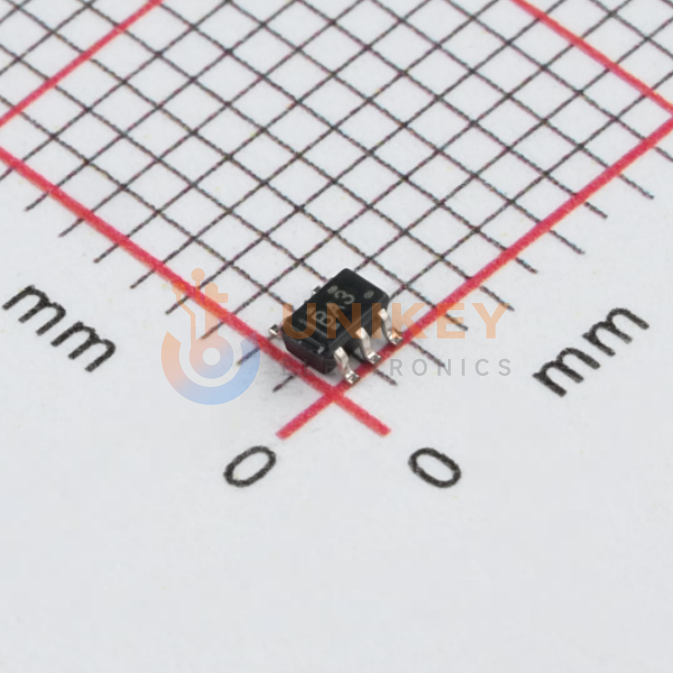

Texas Instruments SN74AHCT1G00DCKR image
Images are for reference only

SN74AHCT1G00DCKR

NAND Gate AHCT, 7.9ns@5V, 15pF, Push-Pull, 4.5V-5.5V, 8mA, SC-70-5, SMD, Adhesive Mount, 1.1mm H

Other Names:SN74AHCT1G00DCKR

Manufacturer:Texas Instruments

Manufacturer Part:SN74AHCT1G00DCKR

Email Document
ECAD Model:

In Stock

3,000 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0934

Ext. Price (USD)

$0.09

Total price$0.09
MOQ1Mult1SPQ3,000DC25+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0934
$0.09
200
$0.0602
$12.04
1,500
$0.0525
$78.75
3,000
$0.0464
$139.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Input Logic Level - High
2V
Current - Output High, Low
8mA, 8mA
Current-Quiescent (Max)
1 µA
Input Logic Level-Low
0.8V
Max Propagation Delay @ V, Max CL
7.9ns @ 5V, 15pF
Voltage - Supply
4.5V ~ 5.5V
Operating Temperature
-40°C ~ 125°C
Logic Type
NAND Gate
Number of Circuits
1
Number of Inputs
2
Package/Case
5-TSSOP, SC-70-5, SOT-353
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
74AHCT1G00
Features
-
Mounting Type
Surface Mount
Rid
376060
Series
74AHCT
Supplier Device Package
SC-70-5
