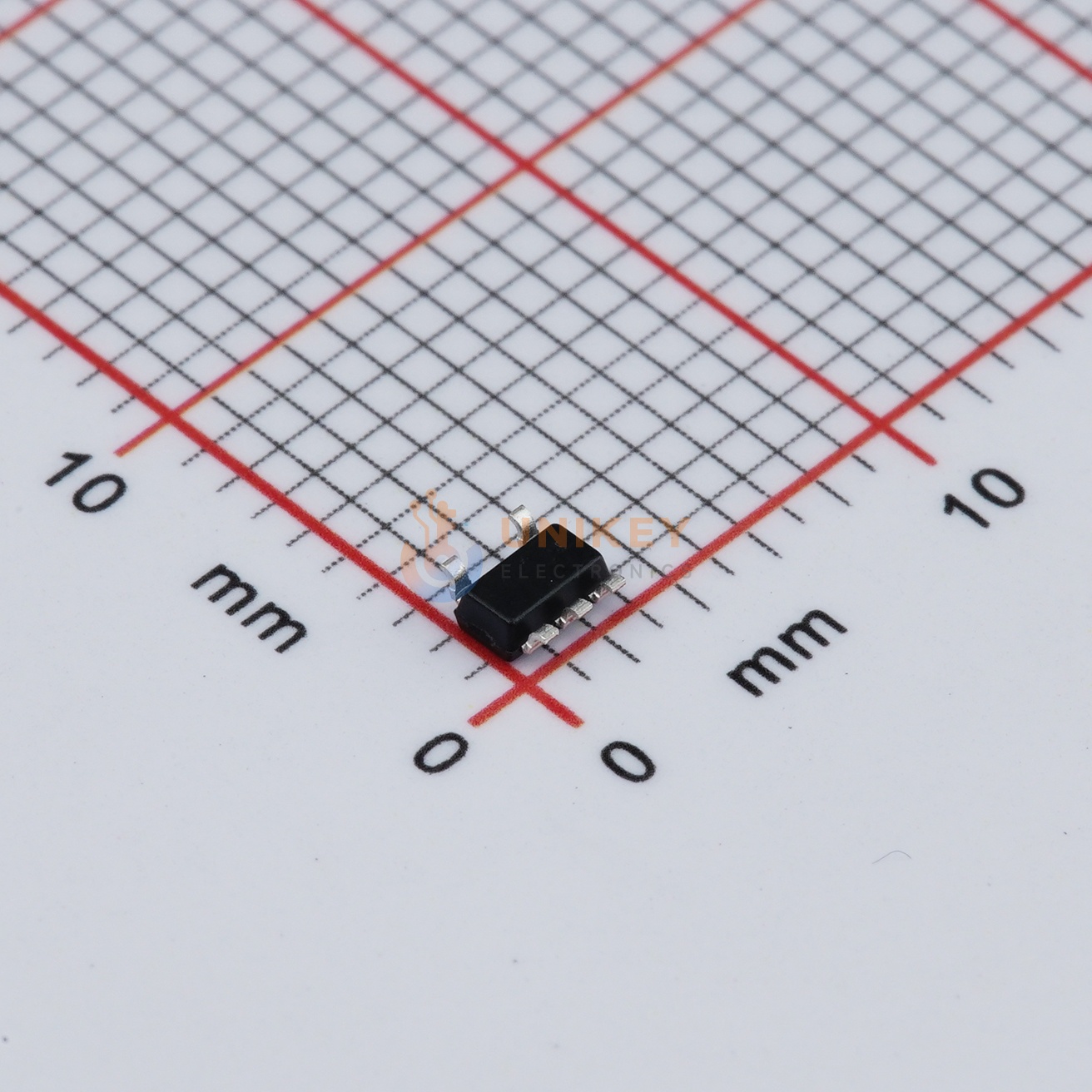

Texas Instruments SN74AHC1G32DBVR image
Images are for reference only

SN74AHC1G32DBVR

OR Gate AHC, 7.5ns@5V,50pF, Push-Pull, 2V-5.5V, 8mA, SOT-23-5, SMD, Adhesive Mount, 1.45mm H

Other Names:SN74AHC1G32DBVR

more
SN74AHC1G32DBVR

Manufacturer:Texas Instruments

Manufacturer Part:SN74AHC1G32DBVR

Email Document
ECAD Model:

In Stock

25,325 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0622

Ext. Price (USD)

$0.62

Total price$0.62
MOQ10Mult1SPQ3,000DC2611+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0622
$0.62
100
$0.0485
$4.85
300
$0.0416
$12.48
3,000
$0.0365
$109.50
6,000
$0.0324
$194.40
9,000
$0.0304
$273.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Input Logic Level - High
1.5V ~ 3.85V
Current - Output High, Low
8mA, 8mA
Current-Quiescent (Max)
1 µA
Input Logic Level-Low
0.5V ~ 1.65V
Max Propagation Delay @ V, Max CL
7.5ns @ 5V, 50pF
Voltage - Supply
2V ~ 5.5V
Operating Temperature
-40°C ~ 85°C
Logic Type
OR Gate
Number of Circuits
1
Number of Inputs
2
Package/Case
SC-74A, SOT-753
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
74AHC1G32
Features
-
Mounting Type
Surface Mount
Rid
276737
Series
74AHC
Supplier Device Package
SOT-23-5
