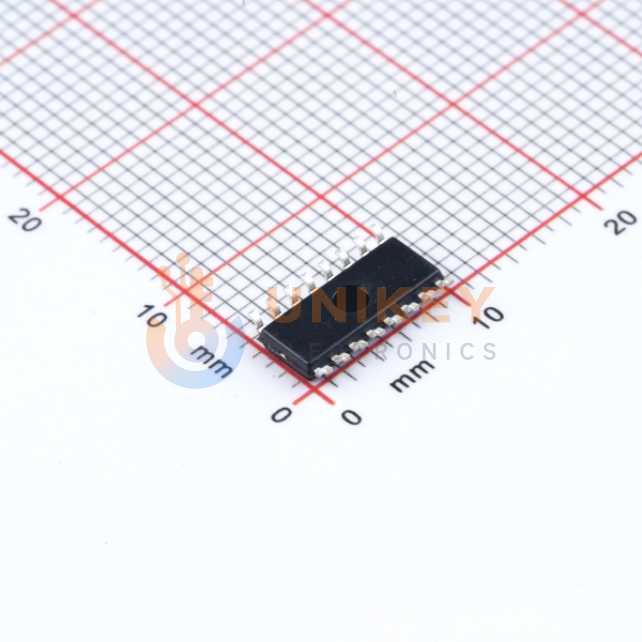

UT3232G-S16-R
RS232 Level Shifter, 3V-5.5V, 250Kbps, SOP-16, SMD
Other Names:UT3232G-S16-R
Manufacturer:UTC
Manufacturer Part:UT3232G-S16-R
Datasheet:UTC UT3232G-S16-R Datasheet (PDF)
Email Document
In Stock
2,500 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.1368
Ext. Price (USD)
$0.13
Total price$0.13
MOQ1Mult1SPQ2,500DC2631+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1368
$0.13
2,500
$0.1267
$316.75
Volume discounts available for larger quantities.
Get Quote Specifications
| Attribute | Value |
| Category Name | |
| Datasheet | |
| RoHS | Compliant |
| Package / Case (Metric) | SOP-16 |
| Mounting Type | SMD mount |
| Application Level | Industrial |
| Product Status | |
| SPM | Tape and reel packaging |
| Operating Temperature | -40℃~85℃ |
| Length/Width/Height | |
| Built-In Options | - |
| Data Rate | 250Kbps |
| LIN Bus Wake-Up Capable | - |
| LIN Specifications | - |
| Max. LIN Bus Voltage | - |
| Max Operating Supply Voltage | 5.5V |
| Min. LIN Bus Voltage | - |
| Min Operating Supply Voltage | 3V |
| Protocols Supported | RS232 |
| Regulator Voltage | - |
Frequently Asked Questions (FAQs)
When integrating the UTC UT3232G-S16-R, match the system to its RS-232 interface, SOP-16 footprint, and VCC operating range. The datasheet specifies RS-232 driver outputs, RS-232 receiver inputs, TTL/CMOS driver inputs, and TTL/CMOS receiver outputs. It also lists charge-pump capacitor pins and external capacitor requirements, so the board design should follow the manufacturer’s pin descriptions, capacitor values, and operating-condition limits.
