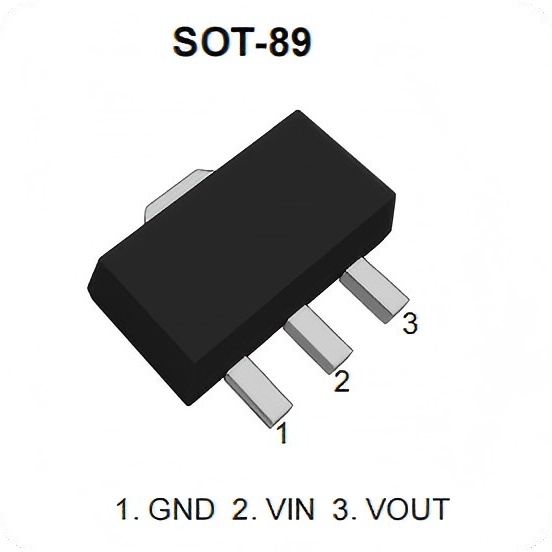

Pingjingsemi PJ79L05SQ image
Images are for reference only

PJ79L05SQ

3-Term Fixed Neg Voltage Reg, -5V Out, VIN Max -30V, 100mA, 500mW, 1.7V Dropout, 0~125°C, Short Circuit, Current Limit, Thermal Shutdown

Other Names:PJ79L05SQ

Manufacturer:Pingjingsemi

Manufacturer Part:PJ79L05SQ

Email Document
ECAD Model:

In Stock

463 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0545

Ext. Price (USD)

$0.05

Total price$0.05
MOQ1Mult1SPQ1,000DC2530+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0545
$0.05
10
$0.0434
$0.43
30
$0.0369
$1.10
100
$0.0333
$3.33
300
$0.0303
$9.09
1,000
$0.0285
$28.50
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Package / Case (Metric)
SOT-89-3
Mounting Type
Application Level
Industrial
Product Status
SPM
Operating Temperature
-40℃~125℃
Length/Width/Height
Line Regulation
-
Load Regulation
-
Max. Dropout Voltage @ Current
1.7V
Max Input Voltage
30V
Max Output Voltage
5V
Min Input Voltage
-
Min. Output Voltage
-
Number of Regulators
-
Output Current
100mA
Output Type
fixed
Polarity
-
Quiescent Current
6mA
Ripple Rejection (PSRR)
49dB@(120Hz)
