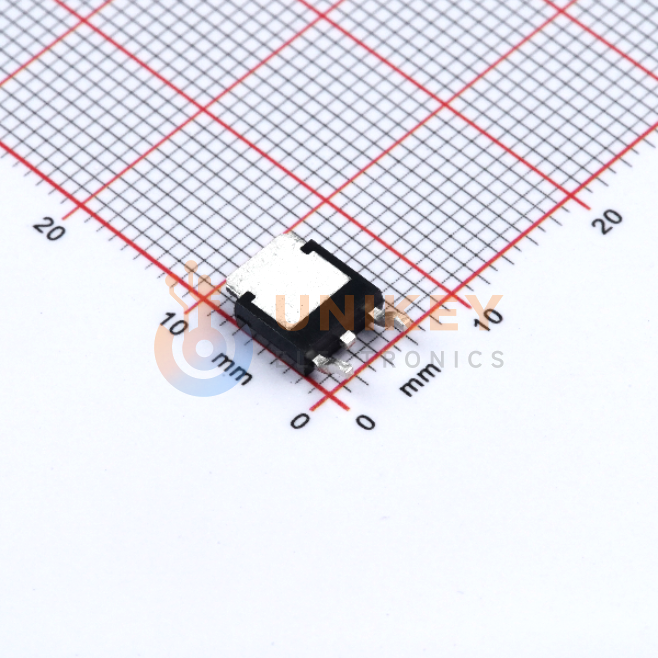

UTC LM317AG-TN3-R image
Images are for reference only

LM317AG-TN3-R

80dB Positive Adjustable 1.5A 1Ch 1.2V 37V 40V 5V@500mA 0.5% 0.04%/V TO-252 Standard Mount

Other Names:LM317AG-TN3-R

Manufacturer:UTC

Manufacturer Part:LM317AG-TN3-R

Email Document
ECAD Model:

In Stock

4,598 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1944

Ext. Price (USD)

$0.97

Total price$0.97
MOQ5Mult1SPQ2,500DC2508+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1944
$0.97
50
$0.1553
$7.76
150
$0.1385
$20.77
500
$0.1093
$54.65
2,500
$0.0976
$244.00
5,000
$0.0924
$462.00
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Compliant
Package / Case (Metric)
TO-252
Mounting Type
standard mounting
Application Level
Industrial
Product Status
SPM
Tape and reel packaging
Operating Temperature
-40℃~85℃
Length/Width/Height
Line Regulation
0.04%/V
Load Regulation
0.5%
Max. Dropout Voltage @ Current
5V@(500mA)
Max Input Voltage
40V
Max Output Voltage
37V
Min Input Voltage
-
Min. Output Voltage
1.2V
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Polarity
positive electrode
Quiescent Current
-
Ripple Rejection (PSRR)
80dB
