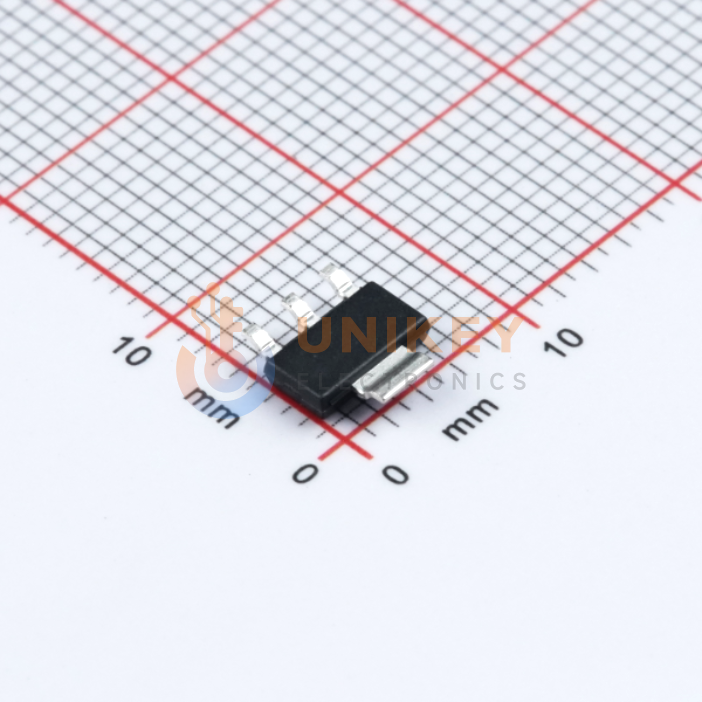

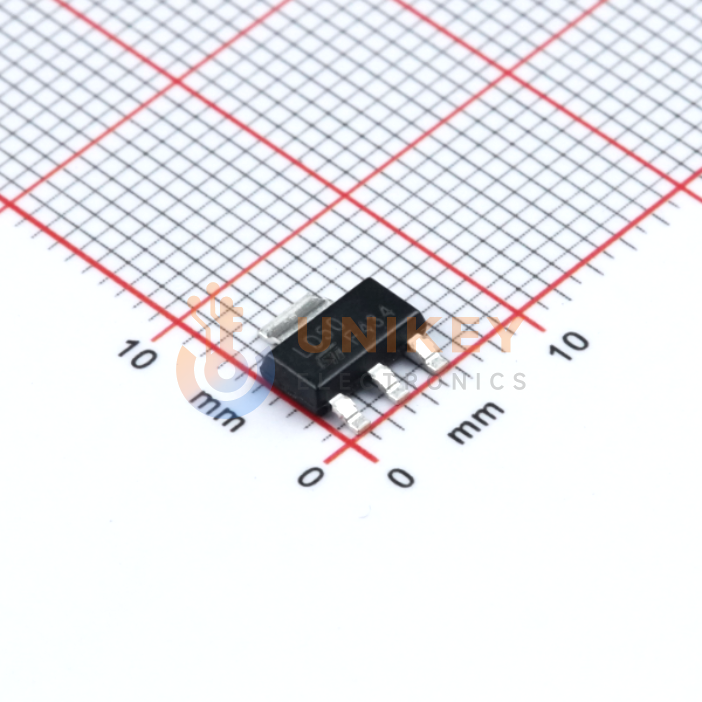

STMicroelectronics LD1117S50TR image
Images are for reference only

LD1117S50TR

STMicroelectronics LDO Regulator, 5V Out, 1.3A, Single Output, SOT-223, SMD, 3+Tab

Other Names:LD1117S50

more
LD1117S50TR
LD1117S50-TR
LD1117S50TR

Manufacturer:STMicroelectronics

Manufacturer Part:LD1117S50TR

Email Document
ECAD Model:

In Stock

239 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1352

Ext. Price (USD)

$0.67

Total price$0.67
MOQ5Mult5SPQ2,500DC2503+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1352
$0.67
50
$0.1247
$6.23
150
$0.1106
$16.59
500
$0.1025
$51.25
1,000
$0.0979
$97.90
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
75dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
800mA
Current - Quiescent (Iq)
10 mA
Voltage Dropout (Max)
1.2V @ 800mA
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
15V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
5V
Package/Case
TO-261-4, TO-261AA
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Current, Over Temperature
Base Product Number
LD1117
Mounting Type
Surface Mount
Rid
1038360
Series
-
Supplier Device Package
SOT-223
