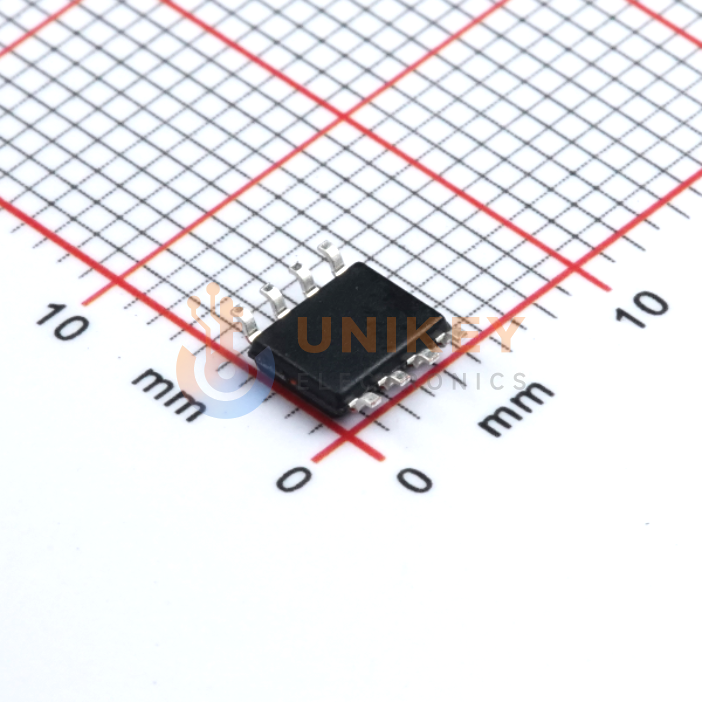

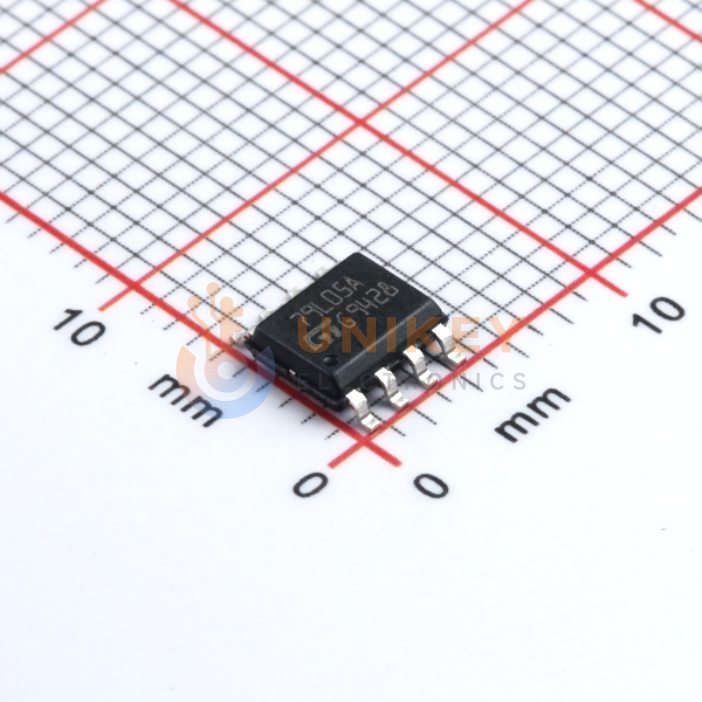

STMicroelectronics L79L05ACD13TR image
Images are for reference only

L79L05ACD13TR

STMicroelectronics Linear Regulator -5V Out 100mA Max Dual SO SMD 8-Pin

Other Names:L79L05ACD13TR

Manufacturer:STMicroelectronics

Manufacturer Part:L79L05ACD13TR

Email Document
ECAD Model:

In Stock

6 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.1207

Ext. Price (USD)

$0.12

Total price$0.12
MOQ1Mult1SPQ2,500DC2428+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1207
$0.12
10
$0.0959
$0.95
50
$0.0867
$4.33
150
$0.0783
$11.74
500
$0.0717
$35.85
2,500
$0.0685
$171.25
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
49dB (120Hz)
Output Configuration
Negative
Output Type
Fixed
Current-Output
100mA
Current - Quiescent (Iq)
5.5 mA
Current - Supply (Max)
6 mA
Voltage Dropout (Max)
-
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
-30V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
-5V
Package/Case
8-SOIC (0.154", 3.90mm Width)
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L79L05
Mounting Type
Surface Mount
Rid
586218
Series
-
Supplier Device Package
8-SOIC
