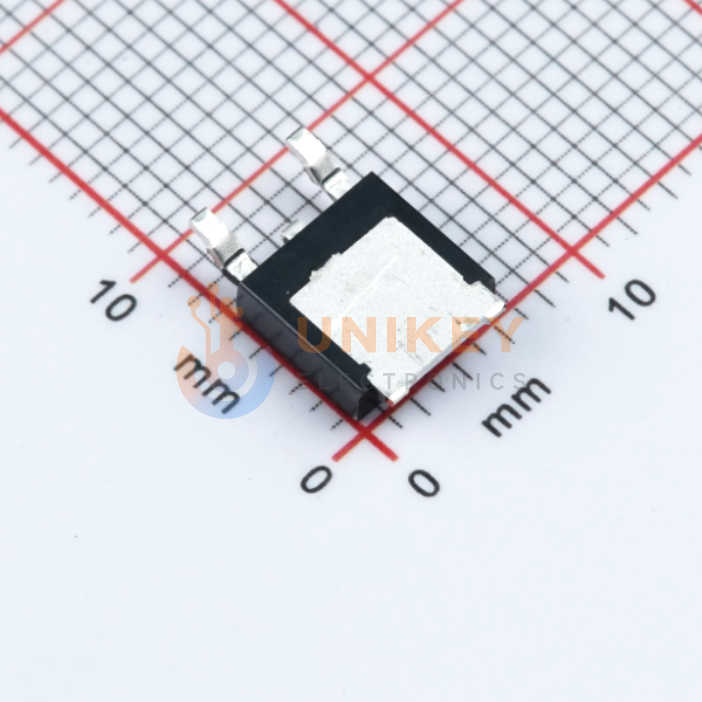

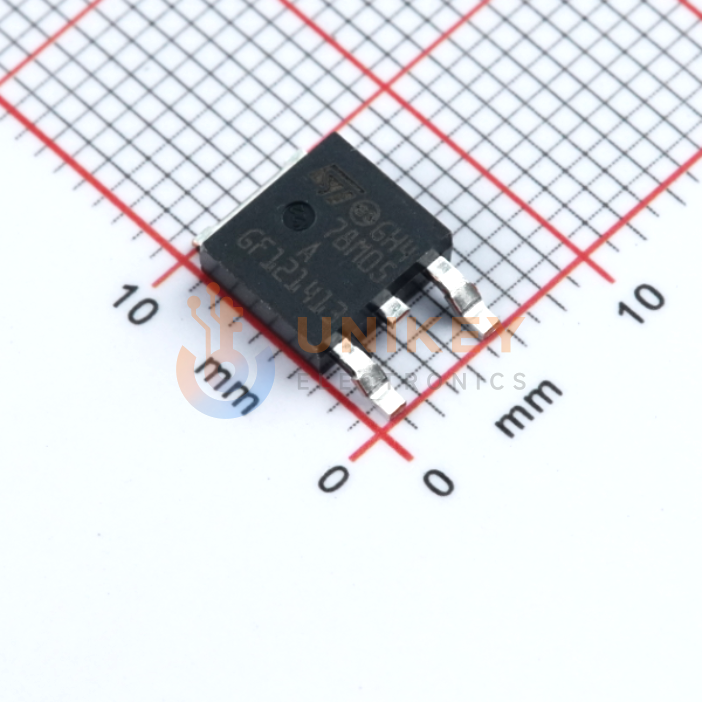

STMicroelectronics L78M05ACDT-TR image
Images are for reference only

L78M05ACDT-TR

STMicroelectronics Linear Regulator, 5V Out, 500mA, Single, DPAK, SMD, 3-Pin

Other Names:L78M05ACDT

more
L78M05ACDT-TR
L78M05ACDTTR

Manufacturer:STMicroelectronics

Manufacturer Part:L78M05ACDT-TR

Email Document
ECAD Model:

In Stock

7,503 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.3963

Ext. Price (USD)

$1.98

Total price$1.98
MOQ5Mult5SPQ2,500DC2522+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.3963
$1.98
50
$0.3076
$15.38
150
$0.2699
$40.48
500
$0.2229
$111.45
2,500
$0.2017
$504.25
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
62dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
500mA
Current - Quiescent (Iq)
6 mA
Voltage Dropout (Max)
-
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
35V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
5V
Package/Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Current, Over Temperature, Short Circuit
Base Product Number
L78M05
Mounting Type
Surface Mount
Rid
585726
Series
-
Supplier Device Package
DPAK
