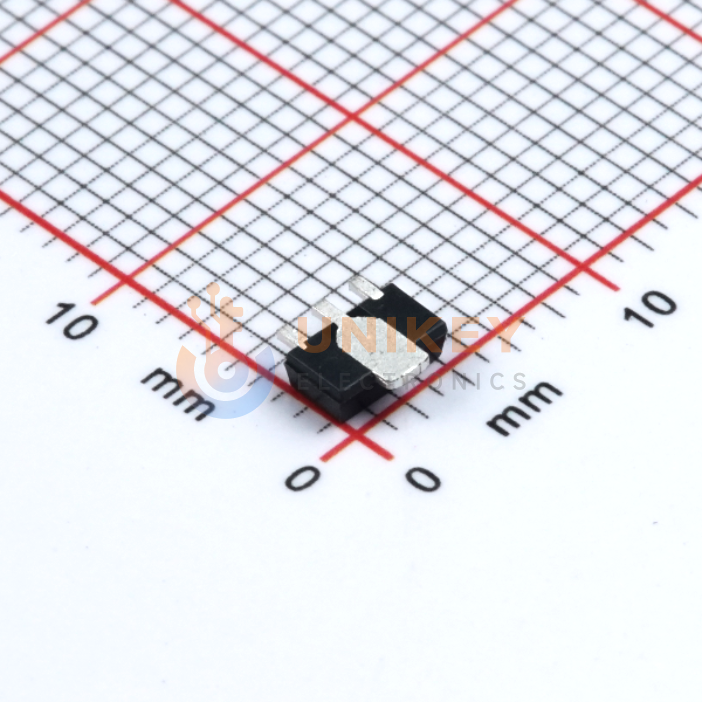

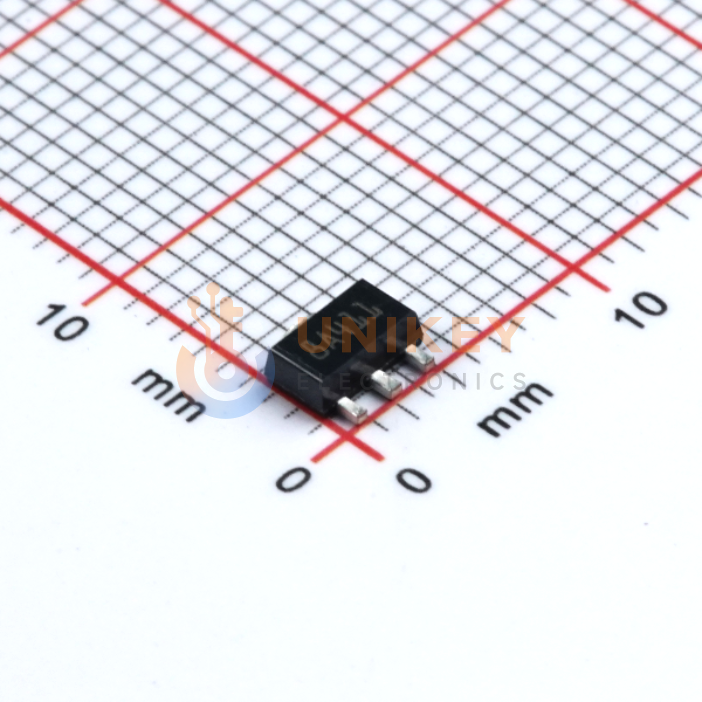

STMicroelectronics L78L33ABUTR image
Images are for reference only

L78L33ABUTR

STMicroelectronics Linear Regulator, 3.3V Out, 100mA Max, Single Ch, SOT-89, SMD, 3-Pin

Other Names:L78L33ABU-TR

more
L78L33ABU
L78L33ABUTR
L78L33ABUTR?

Manufacturer:STMicroelectronics

Manufacturer Part:L78L33ABUTR

Email Document
ECAD Model:

In Stock

119,985 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0563

Ext. Price (USD)

$0.28

Total price$0.28
MOQ5Mult5SPQ2,500DC2522+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0563
$0.05
2,500
$0.0514
$128.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
49dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
100mA
Current - Quiescent (Iq)
5.5 mA
Current - Supply (Max)
6 mA
Voltage Dropout (Max)
-
Operating Temperature
-40°C ~ 125°C
Voltage - Input (Max)
30V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
3.3V
Package/Case
TO-243AA
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Current, Over Temperature, Short Circuit
Base Product Number
L78L33
Mounting Type
Surface Mount
Rid
1883888
Series
-
Supplier Device Package
SOT-89-3

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

According to the manufacturer datasheet, STMicroelectronics L78L33ABUTR is intended for use as a fixed positive voltage regulator. The L78L series is described for local or on-card regulation where distributed regulation is needed, with application examples including output boost, current regulator, and adjustable output regulator circuits. Designers should verify the 3.3 V output, 100 mA current limit, input voltage, thermal conditions, and SOT-89 layout requirements for the specific circuit.
