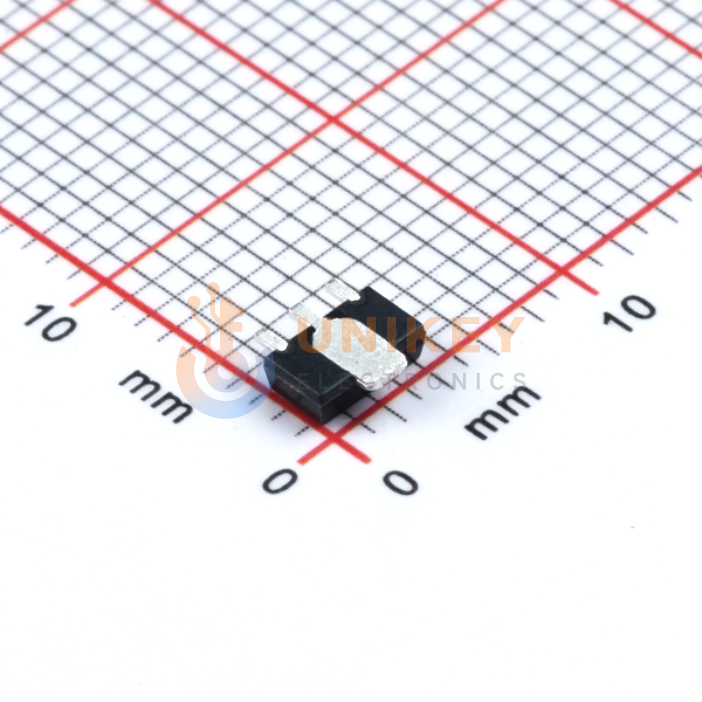

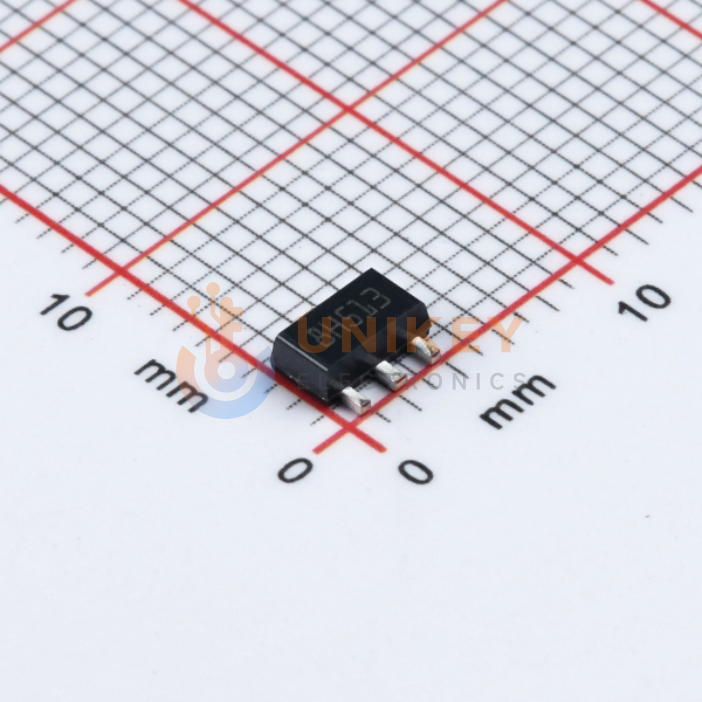

STMicroelectronics L78L09ABUTR image
Images are for reference only

L78L09ABUTR

STMicroelectronics Linear Regulator, 9V Out, 100mA Max, Single Output, SOT-89, SMD, 3-Pin

Other Names:L78L09ABUTR

Manufacturer:STMicroelectronics

Manufacturer Part:L78L09ABUTR

Email Document
ECAD Model:

In Stock

58,047 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1067

Ext. Price (USD)

$0.53

Total price$0.53
MOQ5Mult5SPQ2,500DC2513+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1067
$0.53
50
$0.0984
$4.92
150
$0.0897
$13.45
500
$0.0833
$41.65
1,000
$0.0787
$78.70
2,500
$0.0741
$185.25
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Manufacturer
PSRR
44dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
100mA
Current - Quiescent (Iq)
5.5 mA
Current - Supply (Max)
6 mA
Voltage Dropout (Max)
-
Operating Temperature
-40°C ~ 125°C
Voltage - Input (Max)
30V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
9V
Package/Case
TO-243AA
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Current, Over Temperature, Short Circuit
Base Product Number
L78L09
Mounting Type
Surface Mount
Rid
1884503
Series
-
Supplier Device Package
SOT-89-3

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For the 9 V STMicroelectronics L78L09ABUTR, the datasheet absolute maximum ratings list DC input voltage as 30 V for VO = 3.3 to 9 V and output current as 100 mA. Circuit design should keep the regulator within these limits and verify thermal conditions, since power dissipation is internally limited and SOT-89 RthJA is 55 °C/W with 6 cm² of copper board heat-sink.
