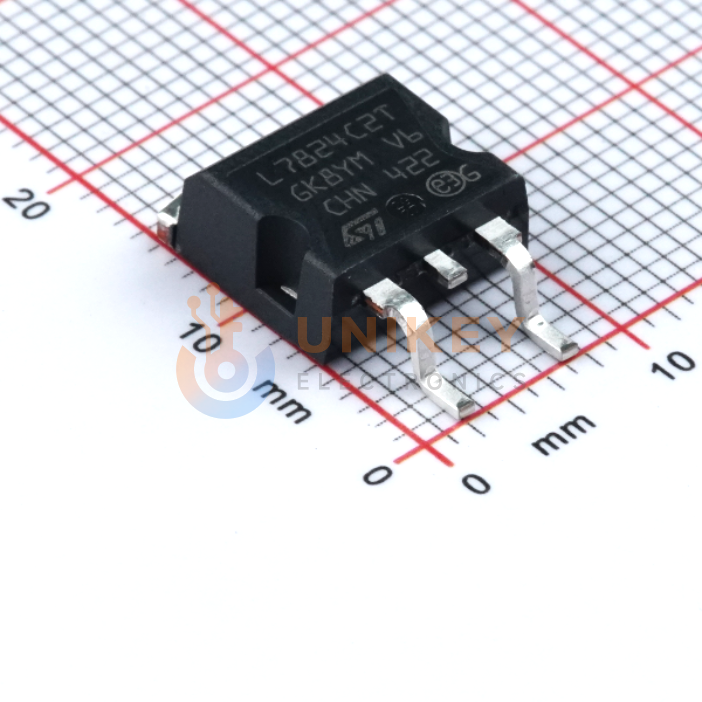

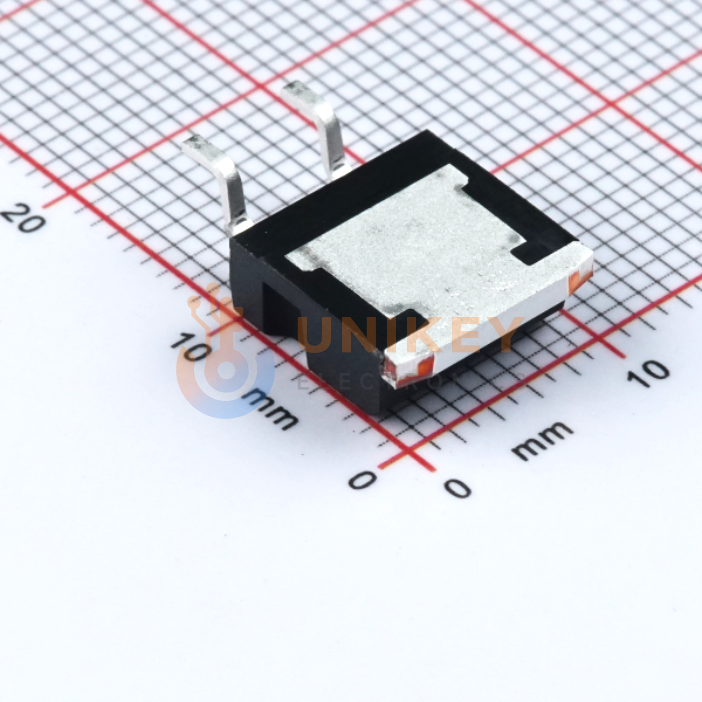

STMicroelectronics L7824CD2T-TR image
Images are for reference only

L7824CD2T-TR

STMicroelectronics Linear Regulator, 24V Out, 1.5A Max, Single Ch, D2PAK, SMD, 3-Pin

Other Names:L7824CD2T

more
L7824CD2T-TR
L7824CD2T-TR
L7824CD2T/TR
L7824CD2TTR

Manufacturer:STMicroelectronics

Manufacturer Part:L7824CD2T-TR

Email Document
ECAD Model:

In Stock

1,575 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.2883

Ext. Price (USD)

$0.28

Total price$0.28
MOQ1Mult1SPQ1,000DC2536+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.2883
$0.28
1,000
$0.265
$265.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
50dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
1.5A
Current - Quiescent (Iq)
8 mA
Voltage Dropout (Max)
2V @ 1A (Typ)
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
40V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
24V
Packaging
Tape & Reel (TR)Cut Tape (CT)
Package/Case
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L7824
Mounting Type
Surface Mount
Rid
954041
Series
-
Supplier Device Package
D2PAK
