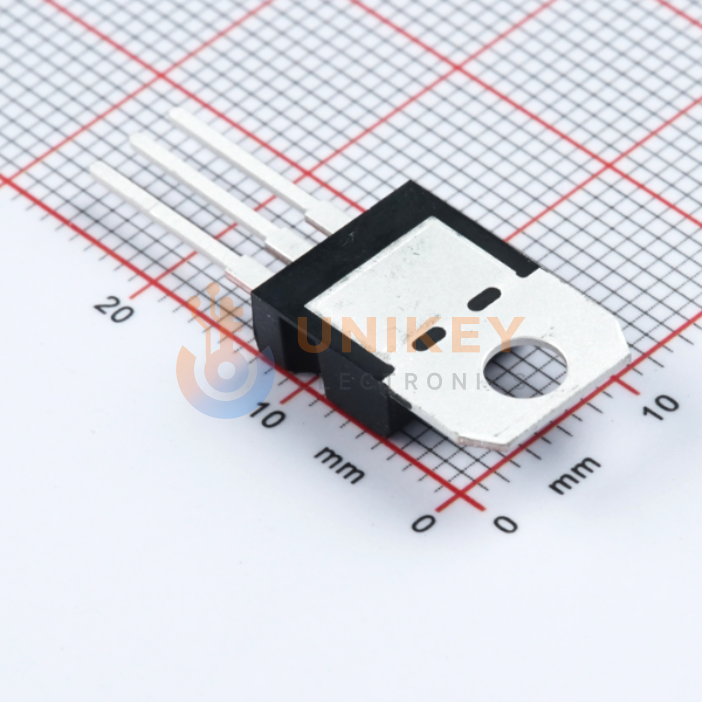

STMicroelectronics L7812CV image
Images are for reference only

L7812CV

STMicroelectronics Linear Voltage Regulator, 12V Out, 1.5A Max, Single Output, TO-220, TH, 3-Pin

Other Names:L7812C-V

more
L 7812 CV
L7812CV

Manufacturer:STMicroelectronics

Manufacturer Part:L7812CV

Email Document
ECAD Model:

In Stock

1,572 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.2207

Ext. Price (USD)

$2.20

Total price$2.20
MOQ10Mult10SPQ50DC2429+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.2207
$1.10
50
$0.1706
$8.53
150
$0.1522
$22.83
500
$0.131
$65.50
2,000
$0.1216
$243.20
5,000
$0.116
$580.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
55dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
1.5A
Current - Quiescent (Iq)
8 mA
Voltage Dropout (Max)
2V @ 1A (Typ)
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
35V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
12V
Packaging
Tube
Package/Case
TO-220-3
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L7812
Mounting Type
Through Hole
Rid
585973
Series
-
Supplier Device Package
TO-220
