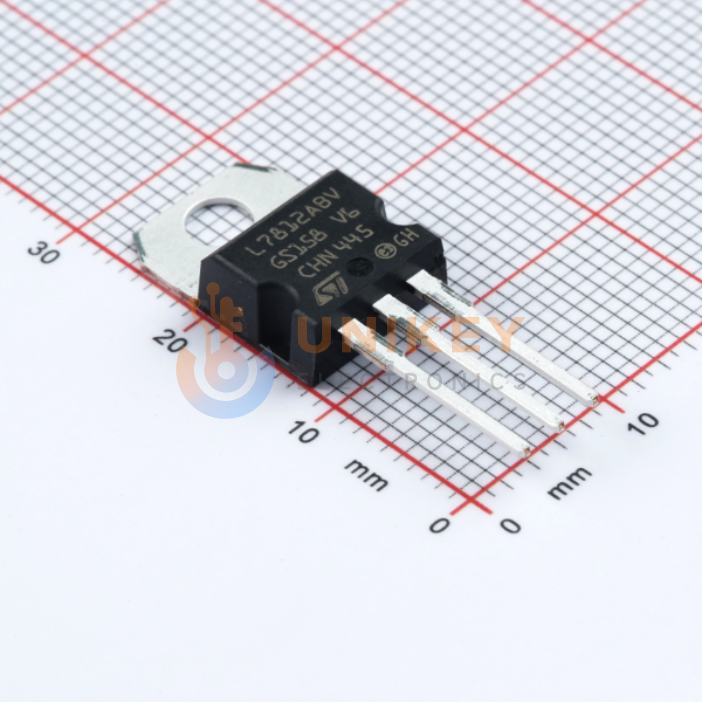

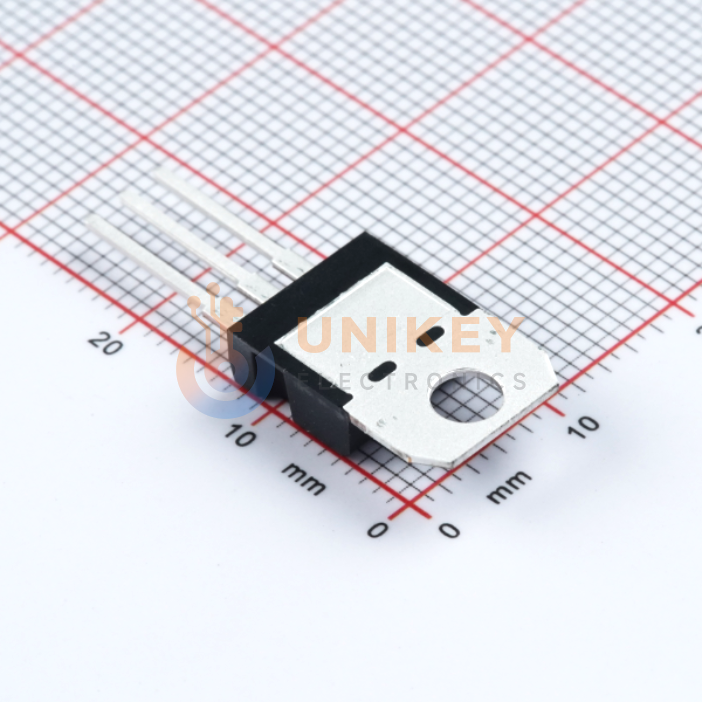

STMicroelectronics L7812ABV image
Images are for reference only

L7812ABV

STMicroelectronics Linear Regulator, 12V Out, 1A Max, Single Channel, TO-220, TH, 3-Pin

Other Names:L7812ABV

Manufacturer:STMicroelectronics

Manufacturer Part:L7812ABV

Email Document
ECAD Model:

In Stock

5 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.191

Ext. Price (USD)

$0.19

Total price$0.19
MOQ1Mult1SPQ50DC2510+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.191
$0.19
10
$0.1724
$1.72
30
$0.1635
$4.90
100
$0.1558
$15.58
500
$0.1468
$73.40
1,000
$0.1333
$133.30
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
60dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
1.5A
Current - Quiescent (Iq)
6 mA
Voltage Dropout (Max)
2V @ 1A (Typ)
Operating Temperature
-40°C ~ 125°C
Voltage - Input (Max)
35V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
12V
Packaging
Tube
Package/Case
TO-220-3
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L7812
Mounting Type
Through Hole
Rid
585970
Series
-
Supplier Device Package
TO-220
