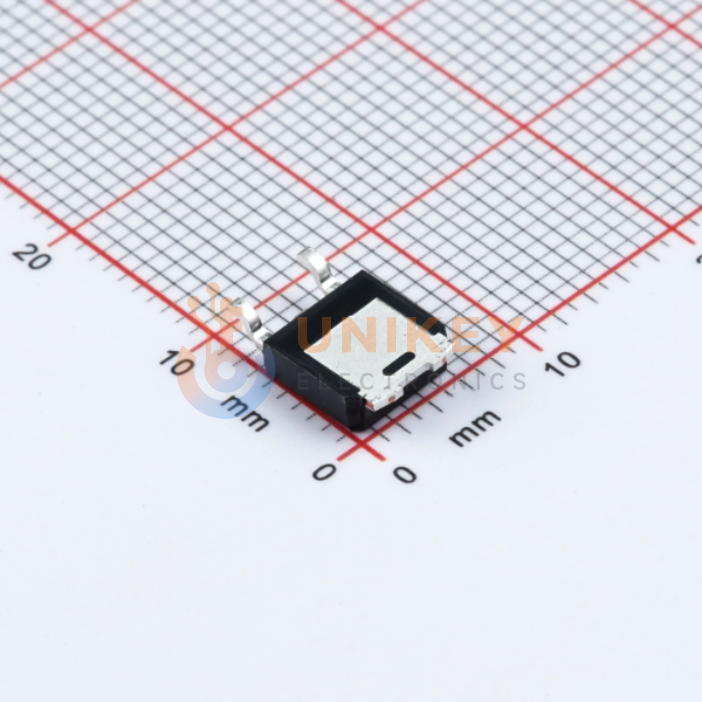

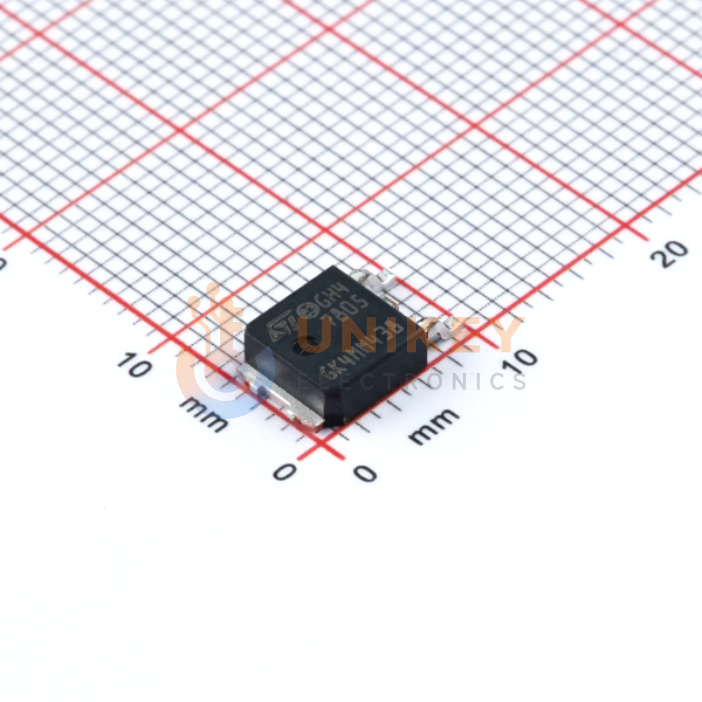

STMicroelectronics L7805CDT-TR image
Images are for reference only

L7805CDT-TR

STMicroelectronics Linear Voltage Regulator, 5V Out, 1.5A Max, DPAK, SMD, 3-Pin

Other Names:L7805CDT

more
L7805CDTTR
L7805CDT-TR

Manufacturer:STMicroelectronics

Manufacturer Part:L7805CDT-TR

Email Document
ECAD Model:

In Stock

6,279 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.2149

Ext. Price (USD)

$2.14

Total price$2.14
MOQ10Mult10SPQ2,500DC2628+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.2149
$2.14
100
$0.1923
$19.23
500
$0.1767
$88.35
2,500
$0.1518
$379.50
5,000
$0.146
$730.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
PSRR
62dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
1.5A
Current - Quiescent (Iq)
8 mA
Voltage Dropout (Max)
2V @ 1A (Typ)
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
35V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
5V
Package/Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L7805
Mounting Type
Surface Mount
Rid
1884492
Series
-
Supplier Device Package
DPAK

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For the STMicroelectronics L7805CDT-TR, thermal behavior should be evaluated against the DPAK thermal data and the intended load. The datasheet states that power dissipation is internally limited and that the device includes thermal overload protection. For the DPAK package, RthJC is 8 °C/W and RthJA is 100 °C/W. It also notes that adequate heat sinking is needed when delivering over 1 A output current, so layout and cooling should be reviewed for high-load operation.
