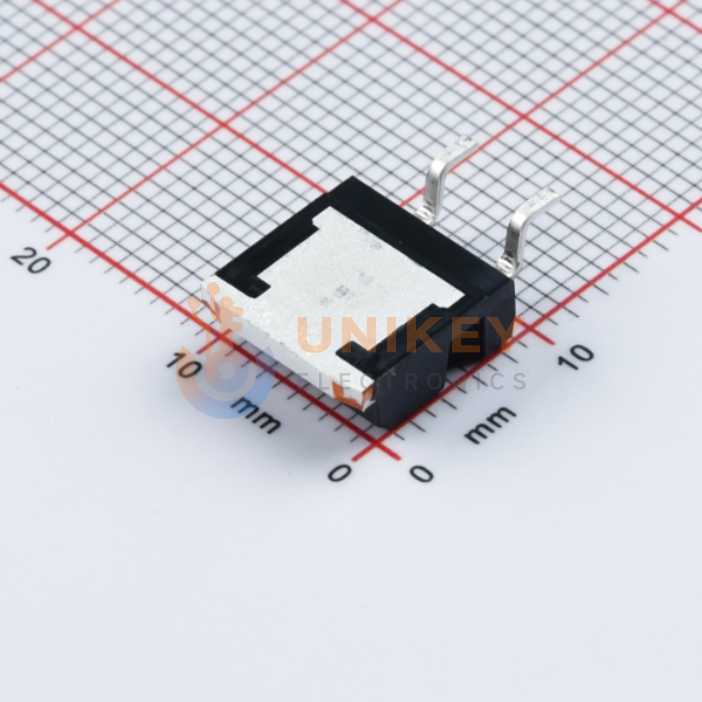

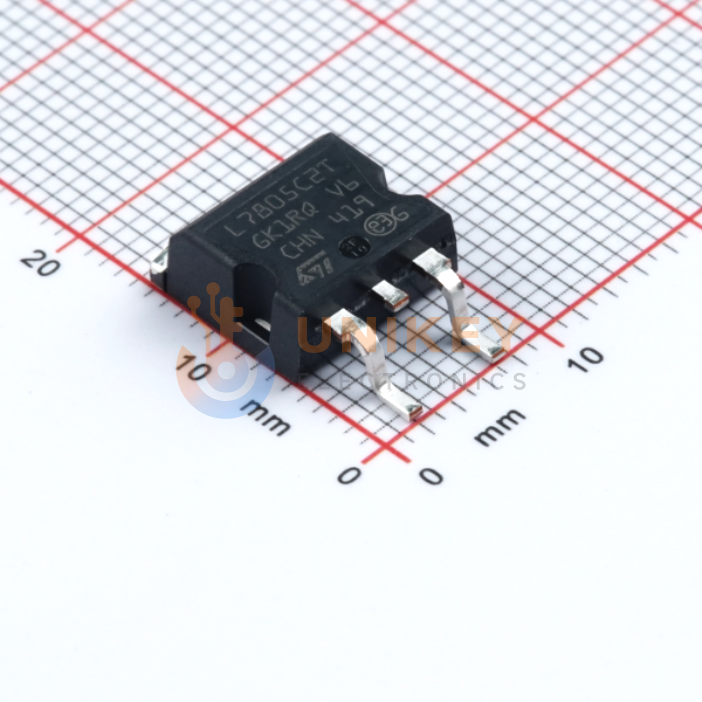

STMicroelectronics L7805CD2T-TR image
Images are for reference only

L7805CD2T-TR

STMicroelectronics Linear Regulator, 5V Out, 1.5A Max, Single, D2PAK, SMD, 3-Pin

Other Names:L7805CD2T

more
L7805CD2TTR
L7805CD2T-TR

Manufacturer:STMicroelectronics

Manufacturer Part:L7805CD2T-TR

Email Document
ECAD Model:

In Stock

10,502 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.2426

Ext. Price (USD)

$0.24

Total price$0.24
MOQ1Mult1SPQ1,000DC2618+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.2426
$0.24
10
$0.2197
$2.19
100
$0.2027
$20.27
500
$0.1924
$96.20
1,000
$0.1877
$187.70
5,000
$0.1808
$904.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Manufacturer
PSRR
62dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
1.5A
Current - Quiescent (Iq)
8 mA
Voltage Dropout (Max)
2V @ 1A (Typ)
Operating Temperature
0°C ~ 125°C
Voltage - Input (Max)
35V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
5V
Package/Case
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L7805
Mounting Type
Surface Mount
Rid
1848393
Series
-
Supplier Device Package
D2PAK

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

According to the STMicroelectronics L78 datasheet, similar regulators are separated by fixed output voltage and orderable package code. L7805CD2T-TR is the D²PAK order code for the 5 V L7805C version, while related ST order codes include L7806CD2T-TR for 6 V, L7808CD2T-TR for 8 V, L7809CD2T-TR for 9 V, L7812CD2T-TR for 12 V, and higher-voltage variants. Do not treat these as direct substitutes without checking voltage, package, pin connection, thermal data, compliance, and lifecycle requirements.
