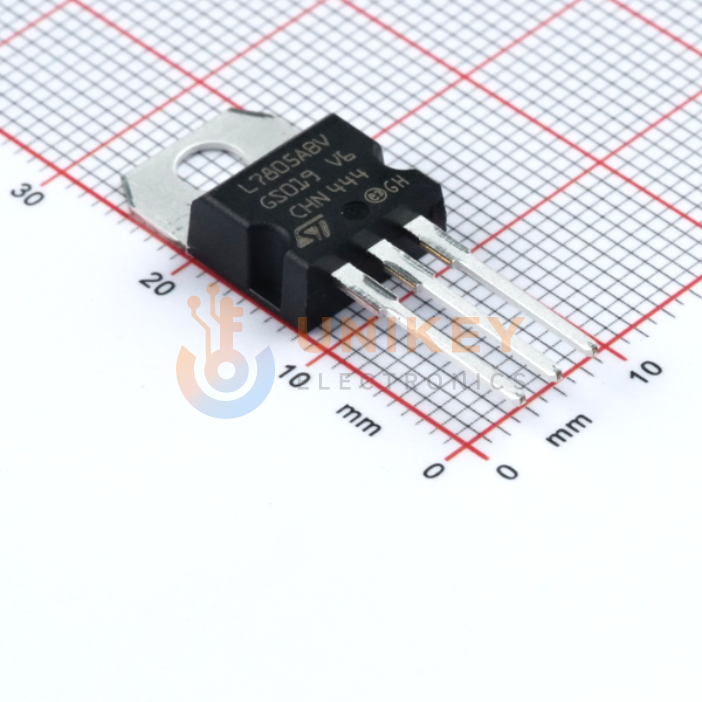

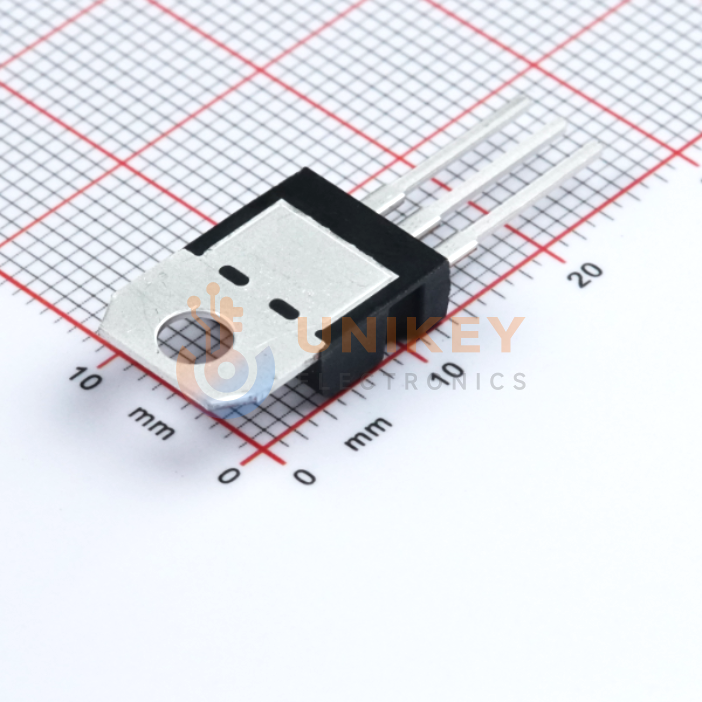

STMicroelectronics L7805ABV image
Images are for reference only

L7805ABV

STMicroelectronics Linear Regulator, 5V Out, 1A Max, Single Output, TO-220, TH, 3-Pin

Other Names:L7805AB-V

more
L7805ABV

Manufacturer:STMicroelectronics

Manufacturer Part:L7805ABV

Email Document
ECAD Model:

In Stock

2,071 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.1897

Ext. Price (USD)

$0.18

Total price$0.18
MOQ1Mult1SPQ50DC2512+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1897
$0.18
10
$0.1776
$1.77
50
$0.1695
$8.47
150
$0.1561
$23.41
500
$0.1478
$73.90
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Manufacturer
PSRR
68dB (120Hz)
Output Configuration
Positive
Output Type
Fixed
Current-Output
1.5A
Current - Quiescent (Iq)
6 mA
Voltage Dropout (Max)
2V @ 1A (Typ)
Operating Temperature
-40°C ~ 125°C
Voltage - Input (Max)
35V
Number of Regulators
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
5V
Packaging
Tube
Package/Case
TO-220-3
Control Features
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Protection Features
Over Temperature, Short Circuit
Base Product Number
L7805
Mounting Type
Through Hole
Rid
634711
Series
-
Supplier Device Package
TO-220

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For the STMicroelectronics L7805ABV, use the L7805A electrical conditions specified in the manufacturer datasheet for design checks. The general test condition for L7805AB is VI = 10 V and IO = 1 A, with TJ = -40 to 125 °C unless otherwise specified. Output voltage is specified over IO = 5 mA to 1 A and VI = 7.5 to 18 V. Dropout voltage is 2 V at IO = 1 A, TJ = 25 °C, and the maximum DC input voltage is 35 V for 5 V output devices.
