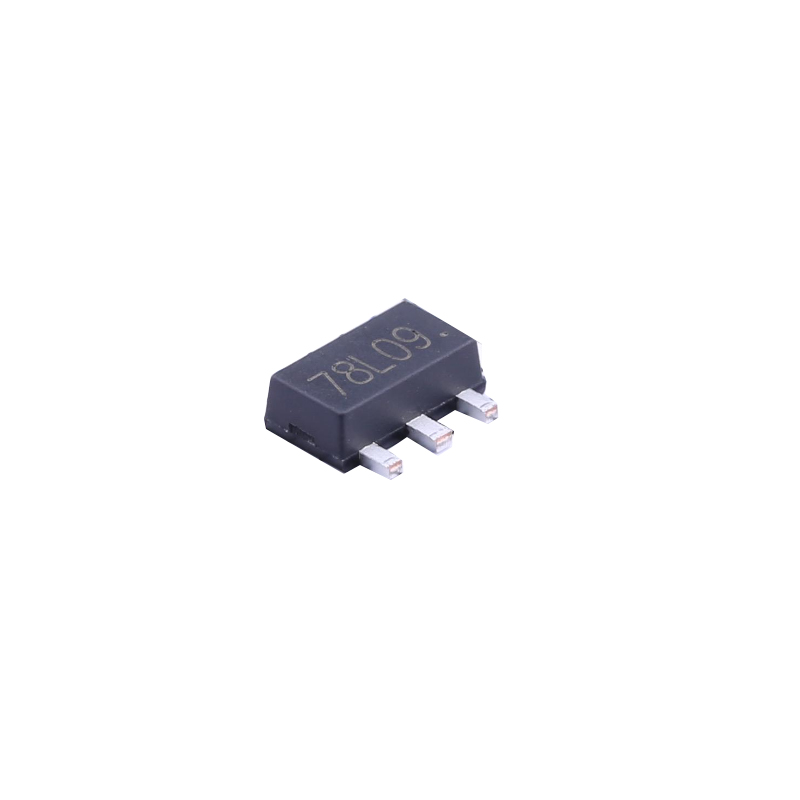

VCC 78L09 image
Images are for reference only

78L09

SOT89-3 Regulator, 9V Out, 0.1A, 30V In Max

Other Names:78L09

Manufacturer:VCC

Manufacturer Part:78L09

Email Document
ECAD Model:

In Stock

1,000 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0303

Ext. Price (USD)

$0.03

Total price$0.03
MOQ1Mult1SPQ1,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0303
$0.03
10
$0.0241
$0.24
30
$0.0202
$0.60
100
$0.0185
$1.85
300
$0.0163
$4.89
1,000
$0.0159
$15.90
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Package / Case (Metric)
SOT-89-3
Mounting Type
Application Level
Industrial
Product Status
SPM
Operating Temperature
-25℃~85℃
Length/Width/Height
Line Regulation
-
Load Regulation
-
Max. Dropout Voltage @ Current
1.7V
Max Input Voltage
35V
Max Output Voltage
9.36V
Min Input Voltage
12V
Min. Output Voltage
8.64V
Number of Regulators
1
Output Current
40mA
Output Type
fixed
Polarity
positive electrode
Quiescent Current
100μA
Ripple Rejection (PSRR)
60dB@(120Hz)
