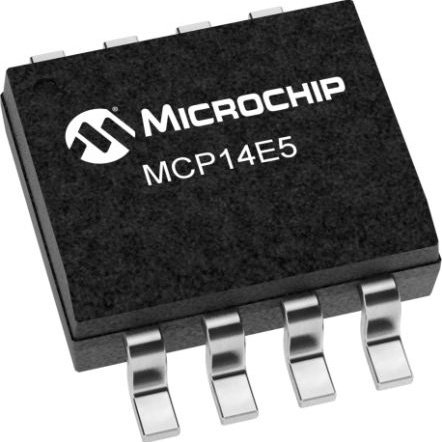

Microchip Technology MCP14E5-E/SN image
Images are for reference only

MCP14E5-E/SN

Level Shifter, Inverting/Non-Inverting, IGBT/MOSFET, N/P-Channel, Low-Side, 4.5V-18V, 2.4V, 4A, 15ns/60ns Typ/18ns, SOIC-8, SMD, 4.9mm × 3.9mm × 800μm

Other Names:MCP14E5E/SN

more
MCP14E5-E/SN

Manufacturer Part:MCP14E5-E/SN

Email Document
ECAD Model:

Available Stock

Available to order:200
Estimated Ship Time:5-10 working days

Quantity

4

Unit Price (USD)

$2.9444

Ext. Price (USD)

$11.77

Total price$11.77
MOQ4Mult2
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
2
$2.9444
$5.88
20
$2.5938
$51.87
100
$2.3262
$232.62
200
$2.2624
$452.48
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current - Peak Output (Source, Sink)
4A, 4A
Rise / Fall Time (Typ)
15ns, 18ns
Voltage - Supply
4.5V ~ 18V
Operating Temperature
-40°C ~ 150°C (TJ)
Channel Type
Independent
Driven Configuration
Low-Side
Input Type
Inverting, Non-Inverting
Logic Voltage - VIL, VIH
0.8V, 2.4V
Number of Drivers
2
Packaging
Tube
Package/Case
8-SOIC (0.154", 3.90mm Width)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
MCP14E5
Gate Type
IGBT, N-Channel, P-Channel MOSFET
Mounting Type
Surface Mount
Series
-
Supplier Device Package
8-SOIC
