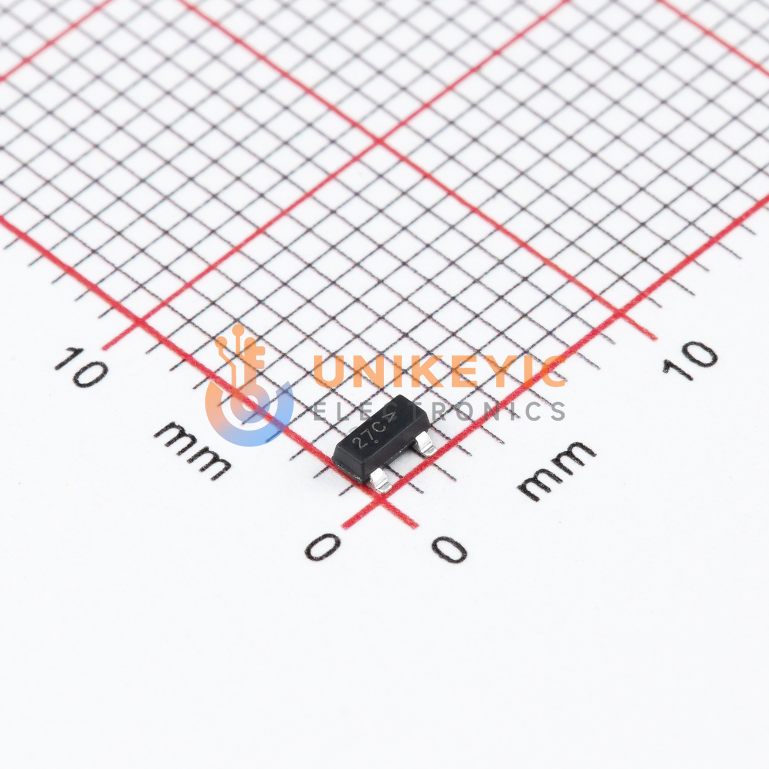

ON Semiconductor SZMMBZ27VCLT1G image
Images are for reference only

SZMMBZ27VCLT1G

onsemi Bi-Directional TVS Diode, Vc Max 38V, SOT-23, SMD, Vbr Min 25.65V

Other Names:SZMMBZ27VCLT1G

Manufacturer:ON Semiconductor

Manufacturer Part:SZMMBZ27VCLT1G

Email Document
ECAD Model:

In Stock

106,277 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0501

Ext. Price (USD)

$0.50

Total price$0.50
MOQ10Mult5SPQ3,000DC2618+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0501
$0.50
100
$0.0395
$3.95
300
$0.0342
$10.26
3,000
$0.0302
$90.60
6,000
$0.027
$162.00
9,000
$0.0254
$228.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance @ Frequency
-
Voltage - Reverse Standoff (Typ)
22V
Current - Peak Pulse (10/1000 µs)
1A
Power - Peak Pulse
40W
Voltage - Breakdown (Min)
25.65V
Voltage - Clamping (Max) @Ipp
38V
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Unidirectional Channels
2
Package/Case
TO-236-3, SC-59, SOT-23-3
Applications
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
SZMMBZ27
Grade
Automotive
Mounting Type
Surface Mount
Rid
13491077
Series
-
Supplier Device Package
SOT-23-3 (TO-236)
