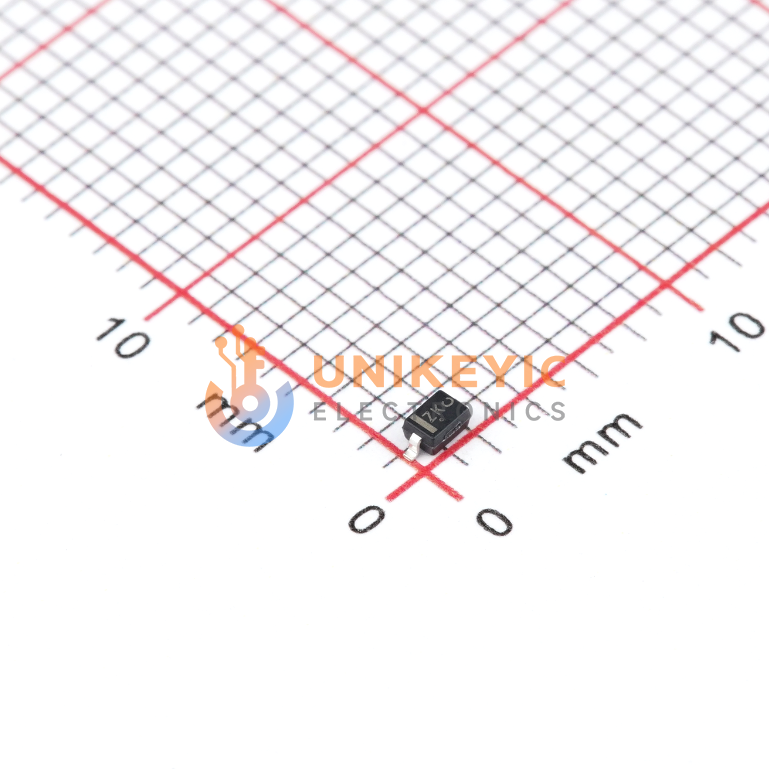

ON Semiconductor SD12CT1G image
Images are for reference only

SD12CT1G

12V Bidirectional 350W 5A 19V 13.3V SC-76, SOD-323 SMD 1.7mm L × 950μm H

Other Names:SD12CT1G

more
SD12CT1G

Manufacturer:ON Semiconductor

Manufacturer Part:SD12CT1G

Email Document
ECAD Model:

In Stock

36,944 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.2912

Ext. Price (USD)

$1.45

Total price$1.45
MOQ5Mult5SPQ3,000DC2626+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.2912
$1.45
50
$0.2166
$10.83
150
$0.185
$27.75
500
$0.1456
$72.80
3,000
$0.128
$384.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance @ Frequency
64pF @ 1MHz
Voltage - Reverse Standoff (Typ)
12V (Max)
Current - Peak Pulse (10/1000 µs)
5A (8/20µs)
Power - Peak Pulse
350W
Voltage - Breakdown (Min)
13.3V
Voltage - Clamping (Max) @Ipp
19V
Operating Temperature
-65°C ~ 150°C (TJ)
Bidirectional Channels
1
Power Line Protection
No
Package/Case
SC-76, SOD-323
Applications
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
SD12
Grade
Automotive
Mounting Type
Surface Mount
Rid
1832033
Series
-
Supplier Device Package
SOD-323
