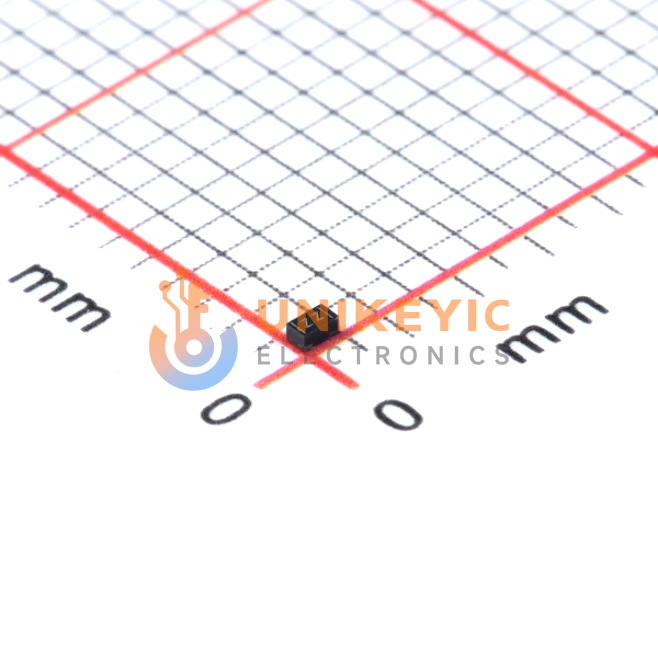

Nexperia PESD5V0F1BL,315 image
Images are for reference only

PESD5V0F1BL,315

Nexperia Dual-Channel ESD Diode, Vc=15V, SMD, SOD-882, Vbr=6V Min

Other Names:PESD5V0F1BL,315

more
PESD5V0F1BL, 315

Manufacturer:Nexperia

Manufacturer Part:PESD5V0F1BL,315

Email Document
ECAD Model:

In Stock

20,189 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0401

Ext. Price (USD)

$0.04

Total price$0.04
MOQ1Mult1SPQ10,000DC2616+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0401
$0.04
10,000
$0.0366
$366.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance @ Frequency
0.4pF @ 1MHz
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000 µs)
2.5A (8/20µs)
Power - Peak Pulse
-
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @Ipp
15V
Operating Temperature
-40°C ~ 125°C (TA)
Bidirectional Channels
1
Power Line Protection
No
Package/Case
SOD-882
Applications
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
PESD5
Grade
Automotive
Mounting Type
Surface Mount
Rid
2229303
Series
-
Supplier Device Package
DFN1006-2
