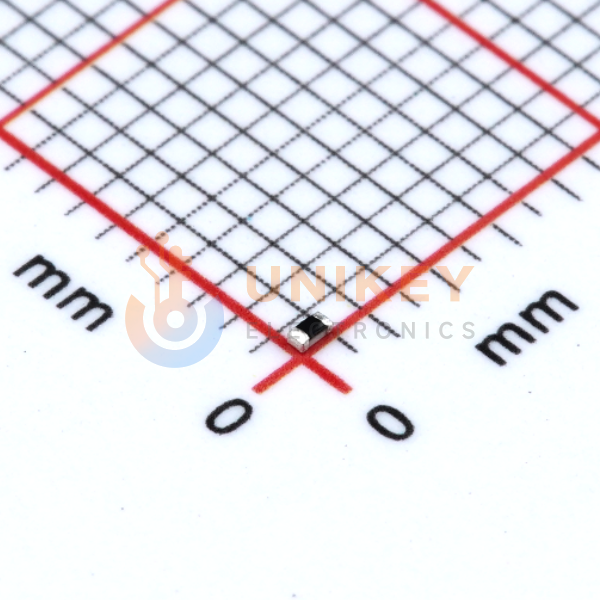

Littelfuse PESD0402-140 image
Images are for reference only

PESD0402-140

Bidirectional TVS Diode 14V 55W 8A 40V 14V 0402 SMD, 430μm H

Other Names:PESD0402-140

more
PESD0402-140
PESD0402140

Manufacturer:Littelfuse

Manufacturer Part:PESD0402-140

Email Document
ECAD Model:

In Stock

494,157 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1232

Ext. Price (USD)

$0.61

Total price$0.61
MOQ5Mult5SPQ10,000DC2545+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1232
$0.61
50
$0.1012
$5.06
150
$0.0904
$13.56
500
$0.0814
$40.70
2,500
$0.0585
$146.25
5,000
$0.0564
$282.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance @ Frequency
-
Voltage - Reverse Standoff (Typ)
14V (Max)
Current - Peak Pulse (10/1000 µs)
-
Power - Peak Pulse
-
Voltage - Breakdown (Min)
-
Voltage - Clamping (Max) @Ipp
40V
Operating Temperature
-55°C ~ 125°C (TJ)
Bidirectional Channels
1
Power Line Protection
No
Package/Case
0402 (1005 Metric)
Applications
Ethernet, HDMI
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Type
Surface Mount
Rid
1968525
Series
-
Supplier Device Package
0402
