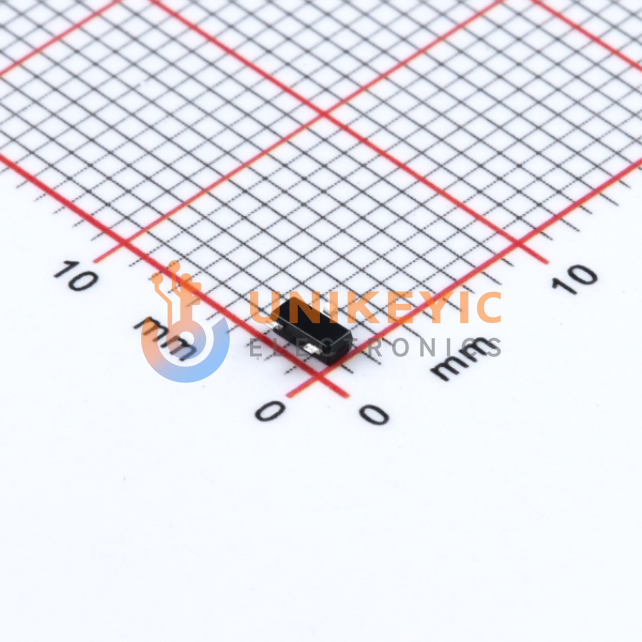

TECH PUBLIC NUP2105LT1G image
Images are for reference only

NUP2105LT1G

Bidirectional TVS Diode 24V 300W 7A 43V 26.7V SOT-23, SMD

Other Names:NUP2105LT1G

Manufacturer:TECH PUBLIC

Manufacturer Part:NUP2105LT1G

Email Document
ECAD Model:

In Stock

126,820 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0489

Ext. Price (USD)

$0.48

Total price$0.48
MOQ10Mult1SPQ3,000DC2619+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0489
$0.48
100
$0.0386
$3.86
300
$0.0333
$9.99
3,000
$0.0271
$81.30
6,000
$0.0258
$154.80
9,000
$0.0249
$224.10
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Package / Case (Metric)
SOT-23
Mounting Type
SMD mount
Application Level
Industrial
Product Status
On sale
SPM
Operating Temperature
-55℃~125℃
Length/Width/Height
Breakdown Voltage
26.7V
Clamping Voltage
43V
Peak Pulse Current
7A
Peak Pulse Power Dissipation
300W
Polarity
Bidirectional
Working Voltage
24V

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The TECH PUBLIC NUP2105LT1G datasheet lists applications such as cellular handsets and accessories, notebooks and handhelds, portable instrumentation, set top boxes, and industrial controls. For selection, engineers and sourcing teams should verify circuit limits against the listed 24 V working voltage, 7 A peak pulse current, 300 W peak pulse power, SOT-23 package, and pin configuration before using it in a design.
