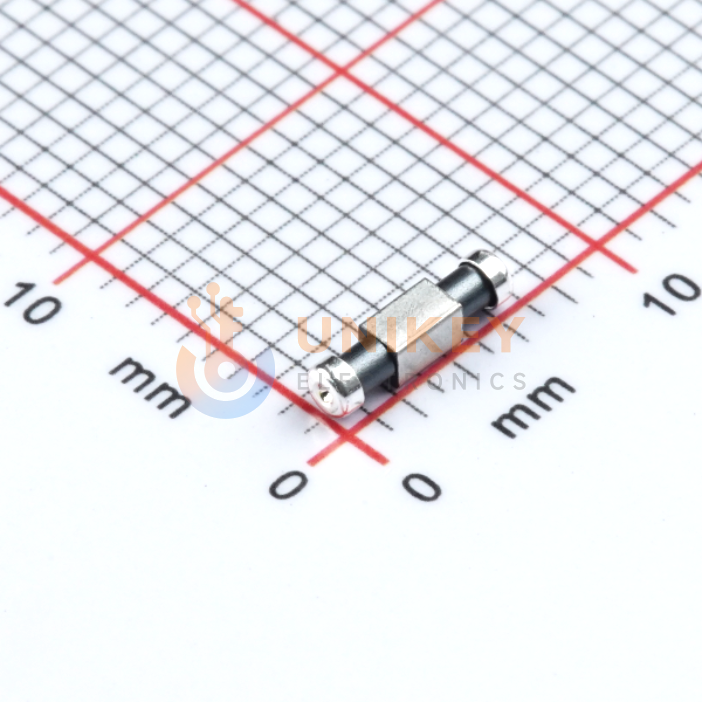

Images are for reference only
NFE61PT472C1H9L
Murata 4.7nF SMD Feed-Through Cap, NFE61HT/PT Series, 50V DC, +85°C
Other Names:NFE61PT472C1H9L
more
NFE61PT472C1H9L
Manufacturer:Murata
Manufacturer Part:NFE61PT472C1H9L
Datasheet:Murata NFE61PT472C1H9L Datasheet (PDF)
Email Document
In Stock
345,181 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.1876
Ext. Price (USD)
$0.93
Total price$0.93
MOQ5Mult5SPQ2,500DC2614+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1876
$0.93
50
$0.1801
$9.00
150
$0.1726
$25.89
500
$0.1651
$82.55
1,500
$0.1576
$236.40
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Filter Order | 3rd |
| Current | 2 A |
| Voltage-Rated | 50V |
| ESD Protection | No |
| Attenuation Value | - |
| Operating Temperature | -40°C ~ 85°C |
| Center / Cutoff Frequency | - |
| Number of Channels | 1 |
| Height | 0.075" (1.90mm) |
| Package/Case | 2706 (6816 Metric), 3 PC Pad |
| Resistance-Channel (Ohms) | - |
| Size / Dimension | 0.268" L x 0.063" W (6.80mm x 1.60mm) |
| Applications | General Purpose |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | NFE61PT |
| Mounting Type | Surface Mount |
| Rid | 600027 |
| Series | EMIFIL®, NFE61 |
| Technology | LC (T-Type) |
| Values | C = 4700pF |
Frequently Asked Questions (FAQs)
For Murata Manufacturing NFE61PT472C1H9L, frequency-dependent performance should be evaluated from the manufacturer’s insertion-loss characteristics and the actual PCB grounding arrangement. The datasheet describes the part as an EMI filter that reduces noise by conducting high-frequency noise elements to ground. It also specifies the NFE61PT472C1H9L as a 4700 pF, 50 V(DC), 2 A(DC) LC combined type device, so engineers should match these ratings and the documented noise-reduction behavior to the target circuit conditions.
