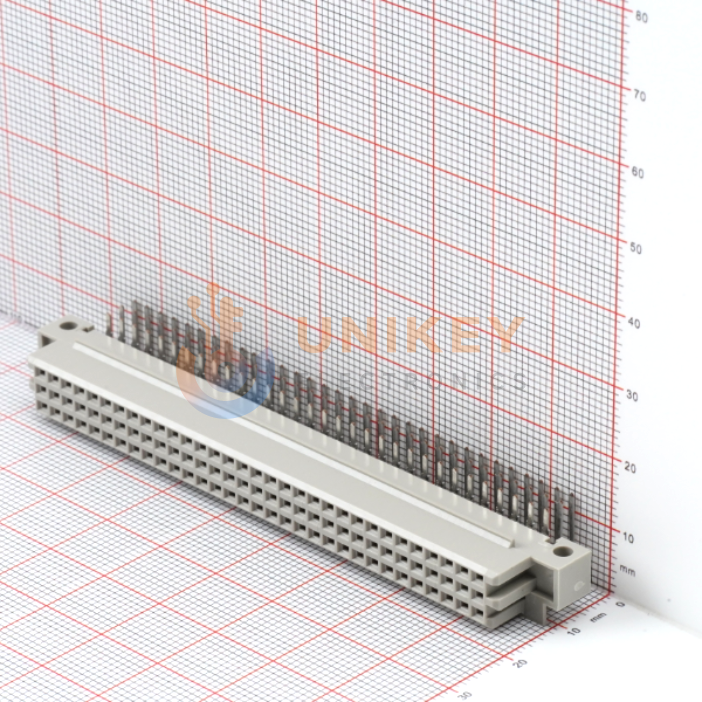

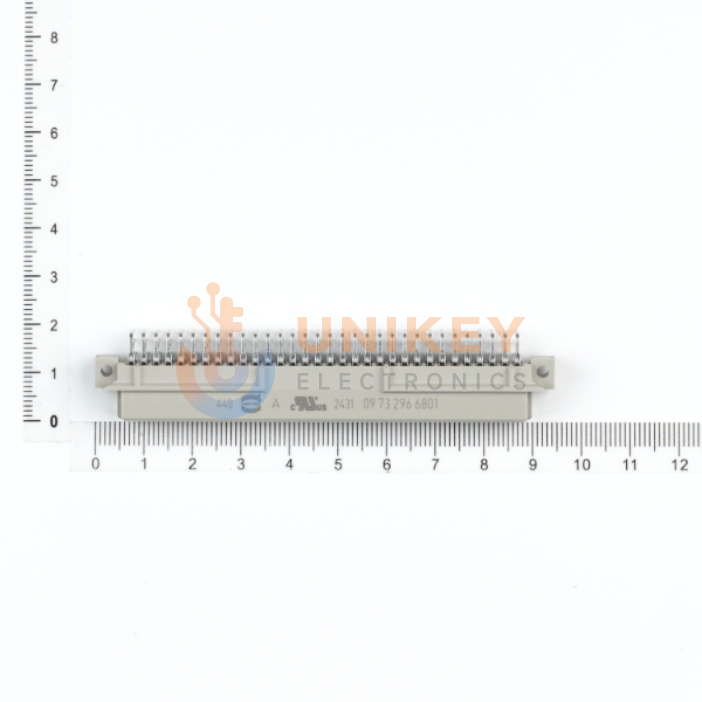

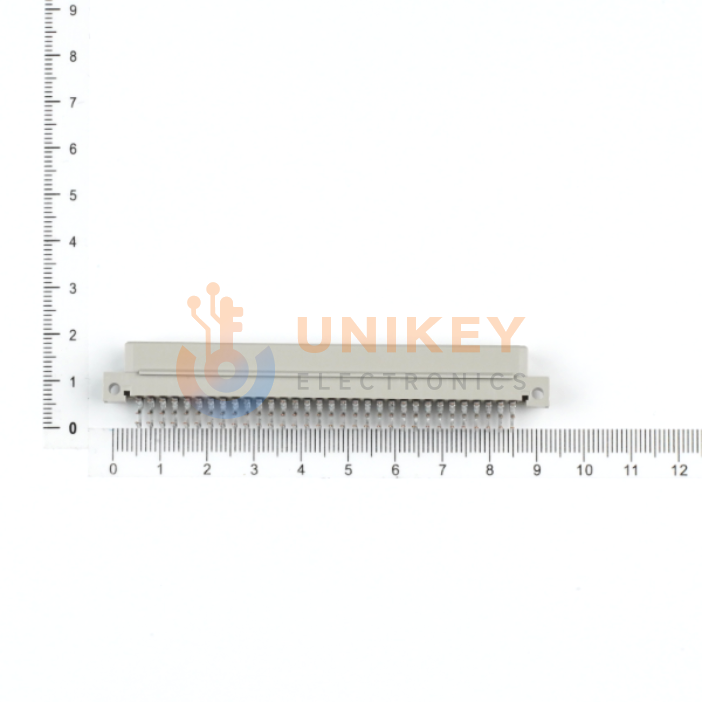

HARTING DIN41612 Connector, Type R, 96 Pos, 3 Rows, Receptacle, Solder Termination
Other Names:0973-296-6801
more
09732966801
09 73 296 6801
0973 296 6801
'09732966801
09-73-296-6801
Manufacturer:HARTING
Manufacturer Part:09 73 296 6801
Datasheet:HARTING 09 73 296 6801 Datasheet (PDF)
Email Document
In Stock
394 In stock, ready to ship
Quantity
1
Unit Price (USD)
$4.8026
Ext. Price (USD)
$4.80
Total price$4.80
MOQ1Mult1SPQ20DC2608+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$4.8026
$4.80
10
$4.2022
$42.02
30
$3.752
$112.56
100
$3.3018
$330.18
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Operating Temperature | - |
| Connector Type | Receptacle, Female Sockets |
| Termination | Solder |
| Current Rating (Amps) | - |
| Contact Finish | - |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
| Material - Insulation | - |
| Packaging | Bulk |
| Pitch | 0.100" (2.54mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | - |
| Level, Class | 2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Series | DIN 41612 |
| Style | R |
Frequently Asked Questions (FAQs)
The HARTING 09 73 296 6801 is associated with the DIN 41612 connector series, and the manufacturer drawing references IEC 60603-2. That supports use in designs built around those connector formats, but it should not be treated as a drop-in replacement without checking the mating connector, row arrangement, board-drilling pattern, right-angle solder geometry, performance level 2, and compliance requirements for the target equipment.
