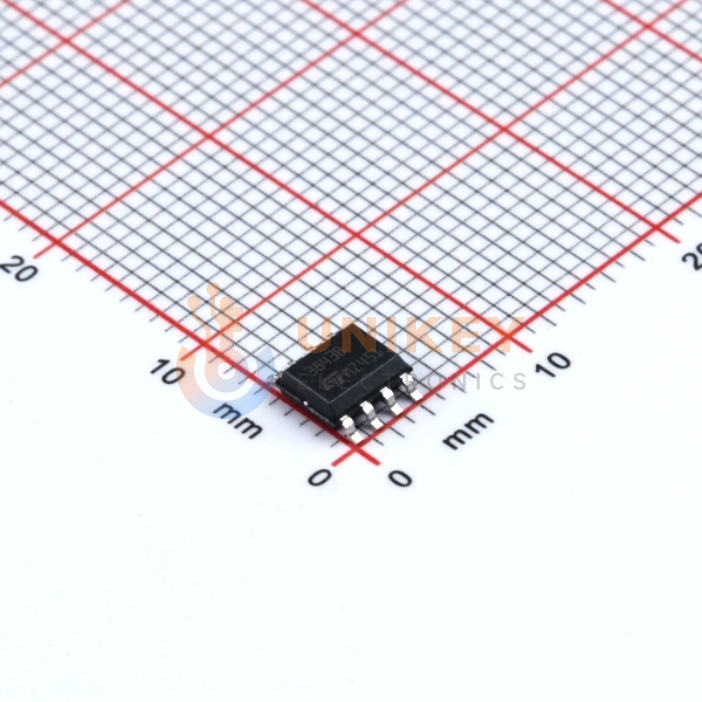

STMicroelectronics UC3843BD1013TR image
Images are for reference only

UC3843BD1013TR

Boost/Flyback Up~500kHz Transistor Driver 1 5.1V 4.9V 5.5V 17V SOIC-8 SMD, Adhesive Mount 1.75mm H

Other Names:UC3843BD1013TR

more
UC3843BD1013

Manufacturer:STMicroelectronics

Manufacturer Part:UC3843BD1013TR

Email Document
ECAD Model:

In Stock

2,387 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.5127

Ext. Price (USD)

$0.51

Total price$0.51
MOQ1Mult1SPQ2,500DC2638+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.5127
$0.51
10
$0.4
$4.00
30
$0.3441
$10.32
100
$0.2944
$29.44
500
$0.2617
$130.85
1,000
$0.2527
$252.70
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency-Switching
Up to 500kHz
Output Configuration
Positive, Isolation Capable
Output Phases
1
Output Type
Transistor Driver
Voltage - Supply (Vcc/Vdd)
7.6V ~ 30V
Operating Temperature
0°C ~ 70°C (TJ)
Synchronous Rectifier
No
Clock Sync
No
Number of Outputs
1
Serial Interfaces
-
Package/Case
8-SOIC (0.154", 3.90mm Width)
Control Features
Frequency Control
Duty Cycle (Max)
96%
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
UC3843
Function
Step-Up, Step-Up/Step-Down
Mounting Type
Surface Mount
Rid
677640
Series
-
Supplier Device Package
8-SOIC
Topology
Boost, Flyback
