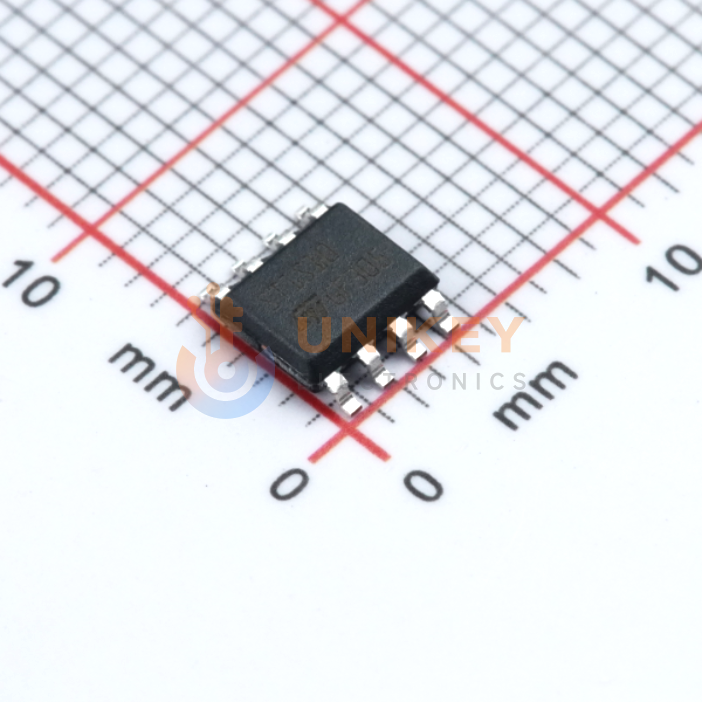

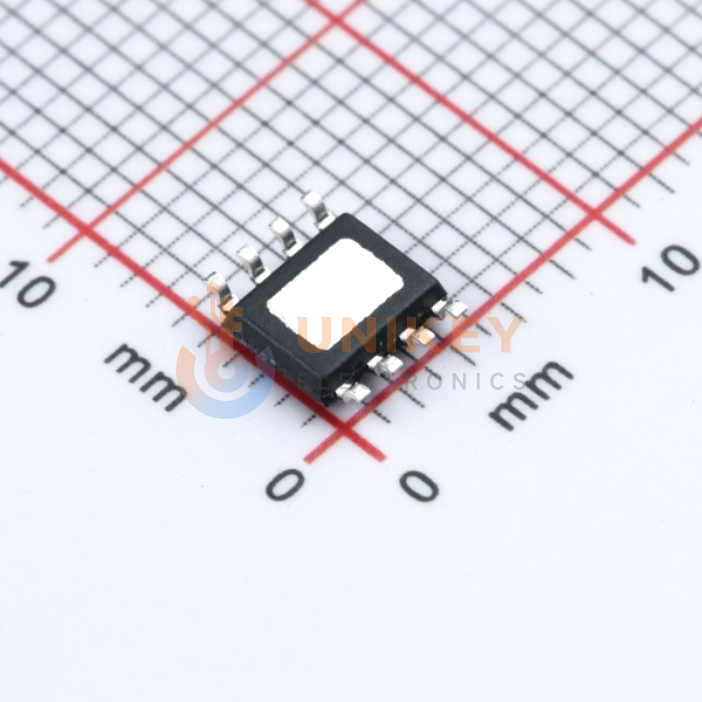

STMicroelectronics ST1S10PHR image
Images are for reference only

ST1S10PHR

STMicroelectronics Buck Converter, Max Output, Max Input 18 V, Adjustable Output

Other Names:ST1S10PHR

Manufacturer:STMicroelectronics

Manufacturer Part:ST1S10PHR

Email Document
ECAD Model:

Available Stock

Available to order:167
Estimated Ship Time:6-13 working days

Quantity

7

Unit Price (USD)

$2.024

Ext. Price (USD)

$14.16

Total price$14.16
MOQ7Mult1SPQ1
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$2.024
$2.02
10
$1.4835
$14.83
25
$1.287
$32.17
100
$1.1232
$112.32
250
$1.0573
$264.32
500
$1.0174
$508.70
1,000
$1.012
$1,012.00
2,500
$0.9299
$2,324.75
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency-Switching
900kHz
Output Configuration
Positive
Output Type
Adjustable
Current-Output
3A
Operating Temperature
-40°C ~ 125°C (TJ)
Synchronous Rectifier
Yes
Voltage - Input (Max)
18V
Voltage - Input (Min)
2.5V
Number of Outputs
1
Voltage - Output (Max)
16.2V
Voltage-Output (Min/Fixed)
0.8V
Package/Case
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
ST1S10
Function
Step-Down
Mounting Type
Surface Mount
Rid
1852380
Series
-
Supplier Device Package
PowerSO-8
Topology
Buck
