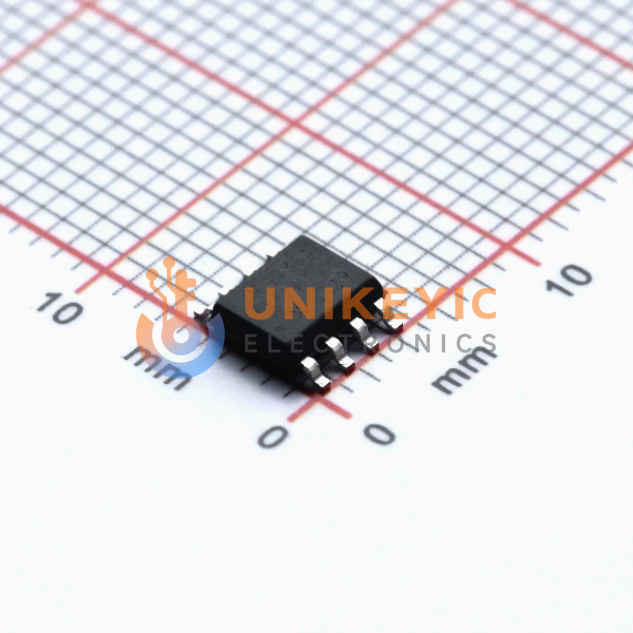

Monolithic Power Systems MP9486AGN-Z image
Images are for reference only

MP9486AGN-Z

Buck No Up~1MHz Fixed 1 5V 5V 95V 4.5V SOIC-8 SMD, Adhesive Mount

Other Names:MP9486AGN-Z

more
MP9486AGNZ

Manufacturer Part:MP9486AGN-Z

Email Document
ECAD Model:

Available Stock

Available to order:10
Estimated Ship Time:5-8 working days

Quantity

10

Unit Price (USD)

$2.2919

Ext. Price (USD)

$22.91

Total price$22.91
MOQ10Mult1SPQ1
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$2.2919
$22.91
50
$2.0534
$102.67
100
$1.8978
$189.78
500
$1.5556
$777.80
1,000
$1.1719
$1,171.90
3,000
$1.0993
$3,297.90
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency-Switching
Up ~ 1MHz
Output Configuration
Positive
Output Type
Fixed
Current-Output
1A
Operating Temperature
-40°C ~ 125°C (TJ)
Synchronous Rectifier
No
Voltage - Input (Max)
95V
Voltage - Input (Min)
4.5V
Number of Outputs
1
Voltage - Output (Max)
-
Voltage-Output (Min/Fixed)
5V
Package/Case
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Base Product Number
MP9486
Function
Step-Down
Mounting Type
Surface Mount
Rid
9433838
Series
Automotive
Supplier Device Package
8-SOIC-EP
Topology
Buck
