DLW31SN900SQ2L

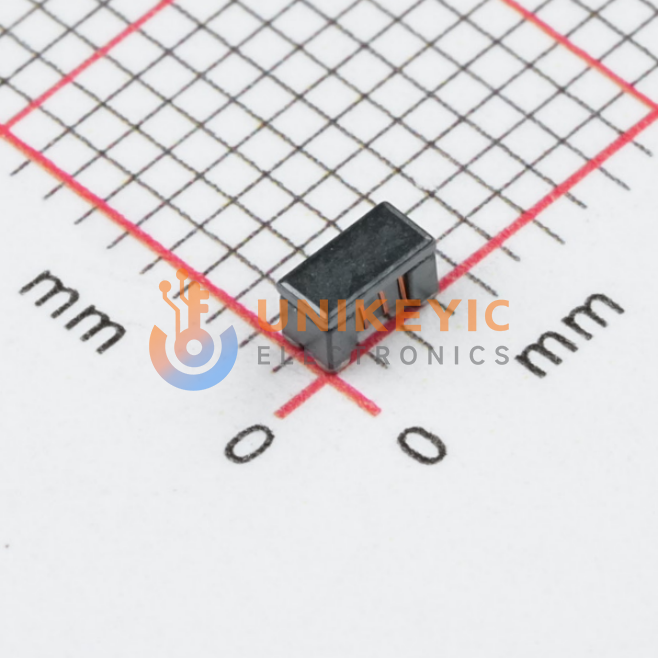

Murata 1206 (3216M) Common Mode Choke, Idc 370mA, Rdc 300mΩ, 3.2mm×1.6mm×1.9mm
Other Names:DLW31SN900SQ2L
more
DLW31SN900SQ2L
Manufacturer:Murata
Manufacturer Part:DLW31SN900SQ2L
Datasheet:Murata DLW31SN900SQ2L Datasheet (PDF)
Email Document
In Stock
38,138 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.269
Ext. Price (USD)
$0.26
Total price$0.26
MOQ1Mult1SPQ2,000DC2628+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.269
$0.26
2,000
$0.2566
$513.20
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 |
| Current Rating (Max) | 370mA |
| DC Resistance (DCR) (Max) | 300mOhm |
| Height (Max) | 0.083" (2.10mm) |
| Package/Case | Horizontal, 4 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | DLW31SN |
| Features | - |
| Filter Type | Signal Line |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 584513 |
| Series | DLW31 |
Frequently Asked Questions (FAQs)
The Murata Manufacturing DLW31SN900SQ2L is rated for operation from -40°C to 85°C, with a rated current of 370mA and a listed 50V DC voltage rating. The datasheet reliability conditions include heat-life testing at 85±2°C with 2 times rated voltage applied for 1000(+48,-0) hours, followed by room-condition recovery before measurement. For design use, keep electrical and thermal conditions within the stated ratings and avoid unsupported mounting or handling conditions.
