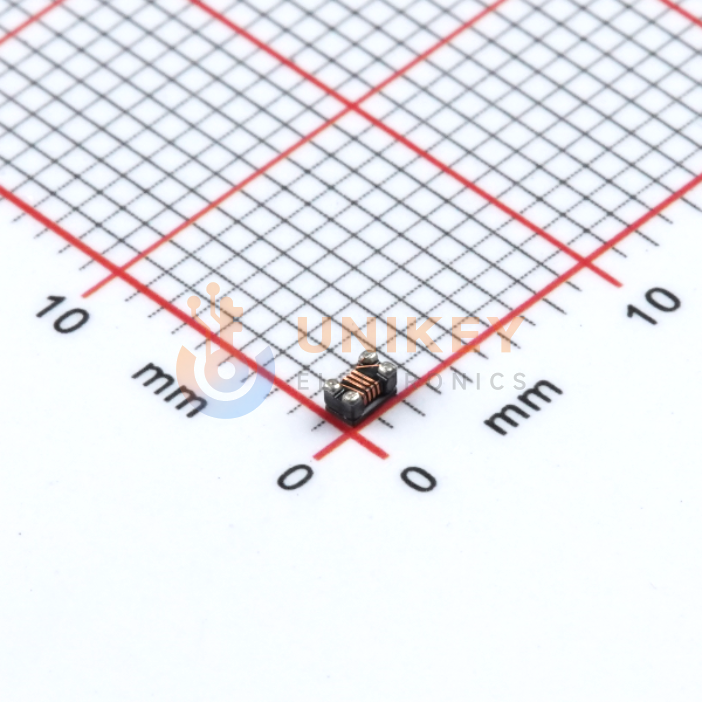

DLW21SN900HQ2L
Murata Common Mode Choke DLW21SN Series, 90Ω, 280mA
Other Names:DLW21SN900HQ2L
more
DLW21SN900HQ2L
Manufacturer:Murata
Manufacturer Part:DLW21SN900HQ2L
Datasheet:Murata DLW21SN900HQ2L Datasheet (PDF)
Email Document
In Stock
112,656 In stock, ready to ship
Quantity
10
Unit Price (USD)
$0.073
Ext. Price (USD)
$0.73
Total price$0.73
MOQ10Mult10SPQ2,000DC2618+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.073
$0.07
2,000
$0.066
$132.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 20V |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 |
| Current Rating (Max) | 280mA |
| DC Resistance (DCR) (Max) | 410mOhm |
| Height (Max) | 0.055" (1.40mm) |
| Package/Case | Horizontal, 4 PC Pad |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | DLW21SN |
| Features | - |
| Filter Type | Signal Line |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 1922885 |
| Series | DLW21 |
Frequently Asked Questions (FAQs)
For high-frequency design checks, evaluate Murata Manufacturing DLW21SN900HQ2L against the manufacturer datasheet conditions rather than assuming performance from similar parts. The key reference point is common mode impedance of 90 ± 25% at 100MHz, with impedance measured at 100±1MHz. The datasheet also provides typical common-mode and differential-mode impedance-frequency curves for DLW21SN900HQ2. Keep operation within 20VDC, 280mA, 0.41Ω max. DCR, and -40 to +85°C, and use reflow solder mounting as specified.
