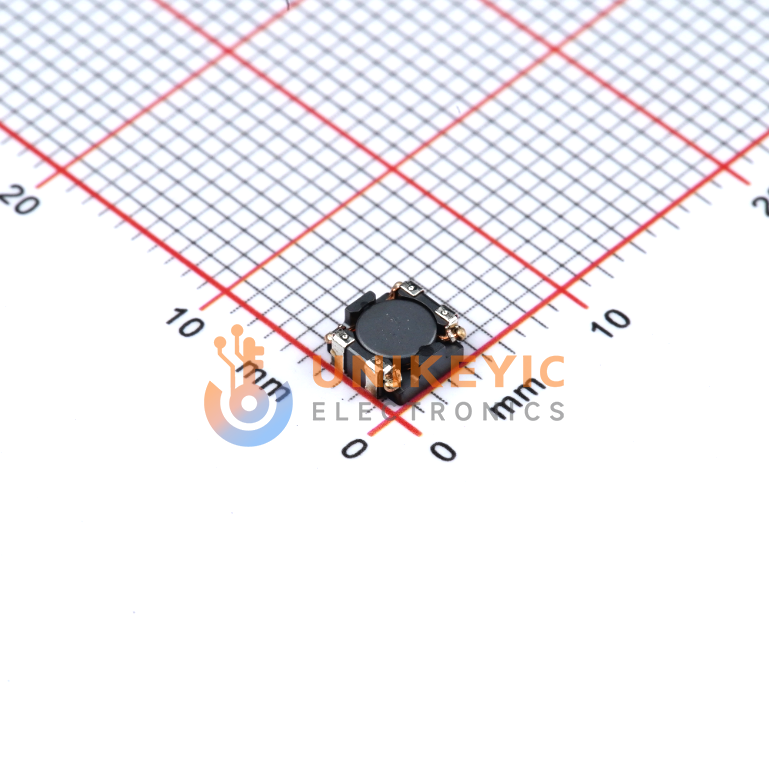

Images are for reference only
ACM4520V-901-2P-T00
50V 50V 1.2A 2-Ch 1.6μH 900Ω@100MHz 60mΩ 1808 Horizontal, SMD 4.7mm × 4.5mm × 2mm
Other Names:ACM4520V-901-2P-T00
more
ACM4520V9012PT00
Manufacturer:TDK
Manufacturer Part:ACM4520V-901-2P-T00
Datasheet:TDK ACM4520V-901-2P-T00 Datasheet (PDF)
Email Document
Available Stock
Available to order:191
Estimated Ship Time:5-7 working days
Quantity
100
Unit Price (USD)
$0.7204
Ext. Price (USD)
$72.04
Total price$72.04
MOQ100Mult10SPQ800DC19+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
100
$0.7204
$72.04
200
$0.7084
$141.68
300
$0.6964
$208.92
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Impedance @ Frequency | 900 Ohms @ 100 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 |
| Current Rating (Max) | 1.2A |
| DC Resistance (DCR) (Max) | 60mOhm |
| Height (Max) | 0.079" (2.00mm) |
| Package/Case | Horizontal, 4 PC Pad |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | - |
| Filter Type | Power Line |
| Mounting Type | Surface Mount |
| Ratings | AEC-Q200 |
| Series | ACM-V |
