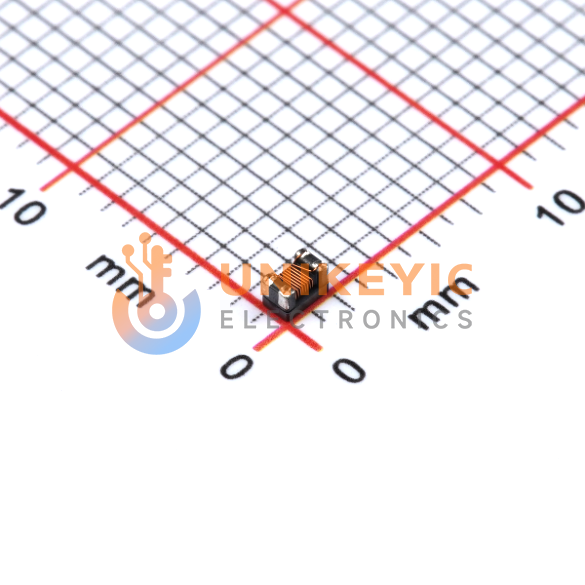

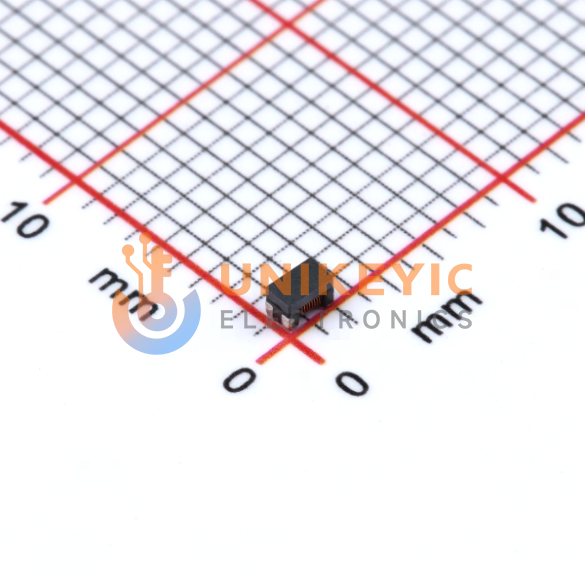

TDK ACM2012H-900-2P-T05 image
Images are for reference only

ACM2012H-900-2P-T05

20V 300mA 2 410nH 90Ω@100MHz 300mΩ 0805 Horizontal Mount SMD 2mm × 1.2mm × 1.3mm

Other Names:ACM2012H9002PT05

more
ACM2012H-900-2P-T05

Manufacturer:TDK

Manufacturer Part:ACM2012H-900-2P-T05

Email Document
ECAD Model:

In Stock

25,433 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1421

Ext. Price (USD)

$0.71

Total price$0.71
MOQ5Mult5SPQ2,000DC2541+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1421
$0.71
50
$0.1226
$6.13
150
$0.1078
$16.17
500
$0.0994
$49.70
2,000
$0.0922
$184.40
4,000
$0.0895
$358.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Voltage Rating - AC
-
Voltage Rating - DC
20V
Impedance @ Frequency
90 Ohms @ 100 MHz
Operating Temperature
-40°C ~ 85°C
Number of Lines
2
Current Rating (Max)
300mA
DC Resistance (DCR) (Max)
300mOhm
Height (Max)
0.051" (1.30mm)
Package/Case
Horizontal, 4 PC Pad
Size / Dimension
0.079" L x 0.047" W (2.00mm x 1.20mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
-
Filter Type
Signal Line
Mounting Type
Surface Mount
Ratings
-
Rid
7355736
Series
ACM-H
