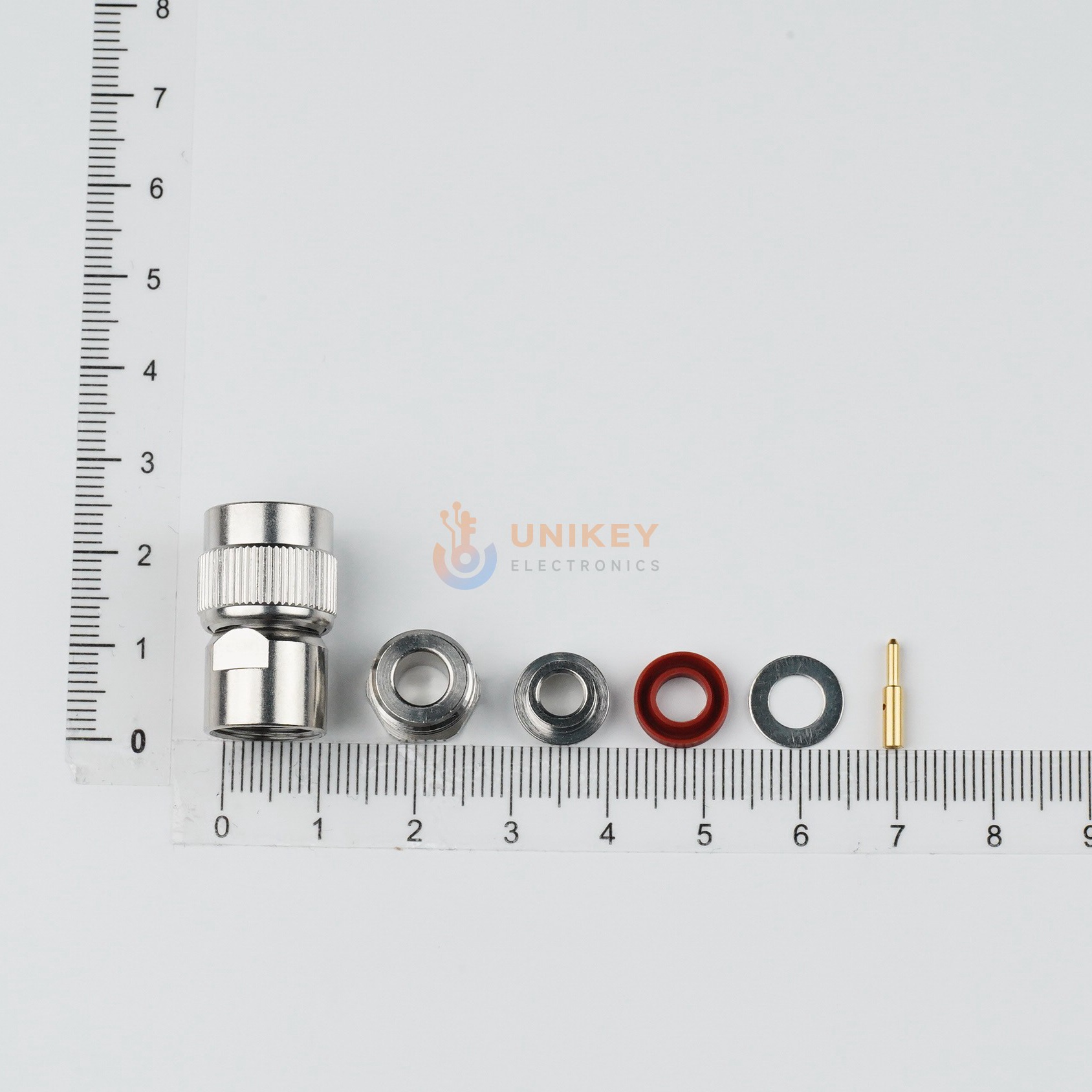

Radiall R143008000 image
Images are for reference only

R143008000

Male Pin, Plug, Threaded, Nickel, Clamp Mount, Wire Mount, Free Hanging, Threaded Mount, TH

Other Names:R143008000

Manufacturer:Radiall

Manufacturer Part:R143008000

Email Document
ECAD Model:

In Stock

231 In stock, ready to ship

Quantity

1

Unit Price (USD)

$18.0446

Ext. Price (USD)

$18.04

Total price$18.04
MOQ1Mult1SPQ100DC2512+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$18.0446
$18.04
10
$14.8003
$148.00
50
$13.6296
$681.48
100
$12.75
$1,275.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Max
11 GHz
Voltage Rating
500 V
Impedance
50 Ohms
Insertion Loss
0.18dB
Operating Temperature
-65°C ~ 165°C
Connector Style
TNC
Connector Type
Plug, Male Pin
Contact Termination
Solder
Number of Ports
1
Shield Termination
Clamp
Body Finish
Nickel
Body Material
Brass
Center Contact Material
Brass
Center Contact Plating
Gold
Dielectric Material
Polytetrafluoroethylene (PTFE)
Packaging
Box
Housing Color
Silver
Ingress Protection
-
Mating Cycles
500
Moisture Sensitivity Level (MSL)
Not Applicable
Base Product Number
R14300
Cable Group
RG-58, 141, 142, 223, 400
Fastening Type
Threaded
Features
-
Includes
-
Mounting Feature
-
Mounting Type
Free Hanging (In-Line)
Rid
14665449
Series
-

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Radiall R143008000, the manufacturer technical data lists a temperature rating of -65/+165 °C and mechanical durability of 500 cycles. It also specifies cable retention of 180 N minimum. Materials include brass, PTFE, and silicone rubber, with nickel and gold-over-nickel finishes. Hermetic seal and pressurized leakage are listed as NA, so sealing or pressurized-leakage performance should not be assumed from this datasheet.
