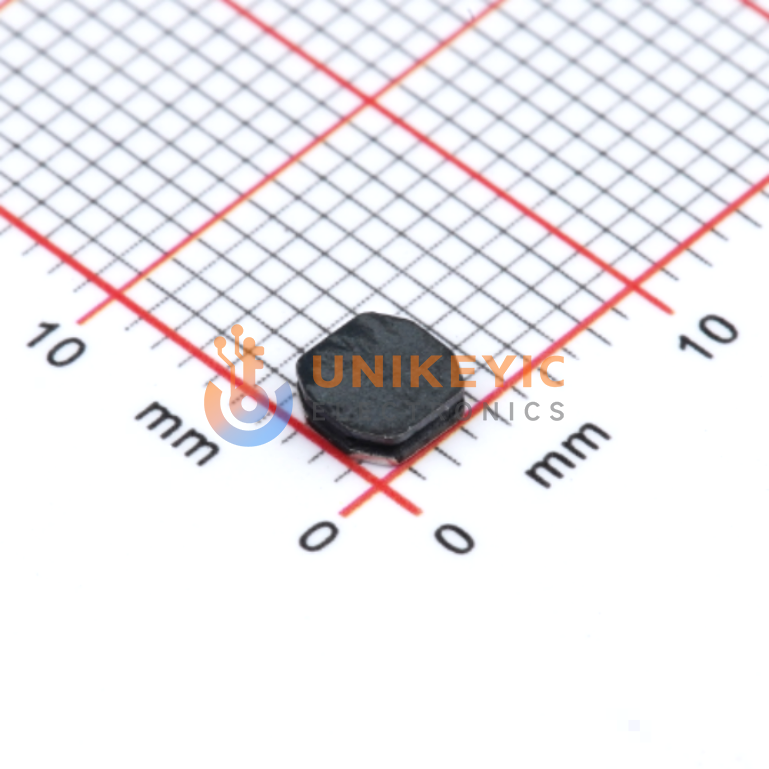

TDK VLS4012ET-220M image
Images are for reference only

VLS4012ET-220M

1MHz 630mA 630mA 22μH 468mΩ ±20% SMD SMD mount 4mm*4mm*1.2mm

Other Names:VLS4012ET-220M

more
VLS4012ET220M

Manufacturer:TDK

Manufacturer Part:VLS4012ET-220M

Email Document
ECAD Model:

In Stock

1,500 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.1229

Ext. Price (USD)

$0.12

Total price$0.12
MOQ1Mult1SPQ1,000DC26+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1229
$0.12
50
$0.082
$4.10
1,000
$0.0742
$74.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
22 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
630mA
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
630 mA
DC Resistance (DCR)
468mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.047" (1.20mm)
Package/Case
Nonstandard
Size / Dimension
0.157" L x 0.157" W (4.00mm x 4.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
2466584
Series
VLS
Supplier Device Package
-
Tolerance
±20%
