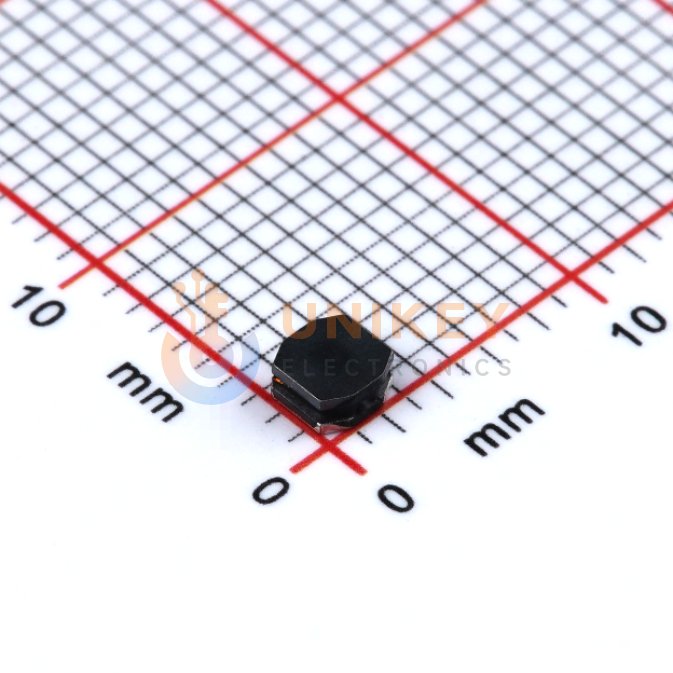

Images are for reference only
VLS3015ET-4R7M
1MHz 1A 1A 4.7μH 136mΩ ±20% SMD SMD mount 3mm*3mm*1.5mm
Other Names:VLS3015ET4R7M
more
VLS3015ET-4R7M
Manufacturer:TDK
Manufacturer Part:VLS3015ET-4R7M
Datasheet:TDK VLS3015ET-4R7M Datasheet (PDF)
Email Document
In Stock
12,919 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.0543
Ext. Price (USD)
$0.27
Total price$0.27
MOQ5Mult5SPQ2,000DC2611+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0543
$0.05
2,000
$0.0485
$97.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | - |
| Inductance | 4.7 µH |
| Inductance Frequency-Test | 1 MHz |
| Q @ Freq | - |
| Current - Saturation (Isat) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Current Rating (Amps) | 1 A |
| DC Resistance (DCR) | 136mOhm Max |
| Material - Core | Ferrite |
| Height-Seated (Max) | 0.059" (1.50mm) |
| Package/Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Ratings | - |
| Series | VLS |
| Supplier Device Package | - |
| Tolerance | ±20% |
Frequently Asked Questions (FAQs)
The TDK VLS3015ET-4R7M should be evaluated within the datasheet limits rather than by broad reliability claims. The VLS3015E operating temperature range is –40 to +105°C, including self-temperature rise, and the device is compatible with RoHS, halogen-free requirements, and lead-free soldering. The datasheet also notes storage and handling limits, cautions against corrosive environments, and requests sufficient thermal design because self-heating occurs during operation. Product status is Not For New Designs.
