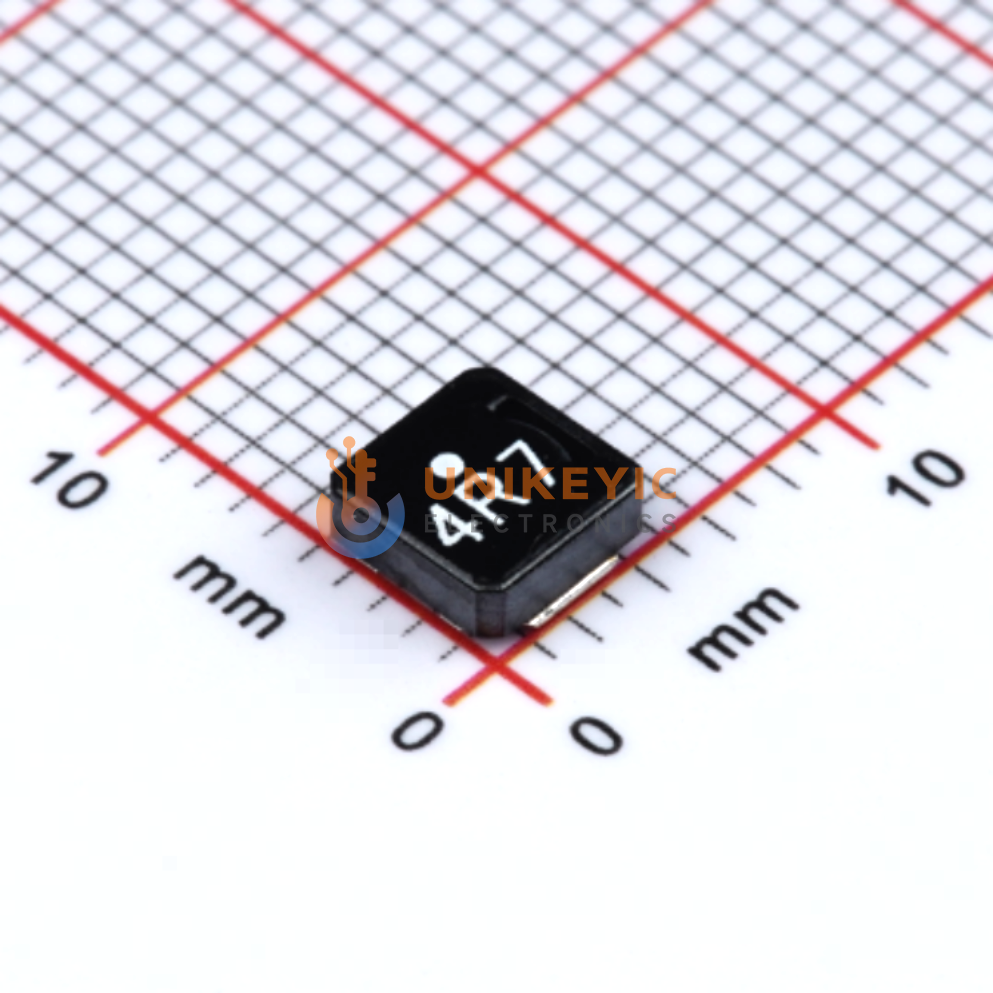

TDK VLCF5020T-4R7N1R7-1 image
Images are for reference only

VLCF5020T-4R7N1R7-1

100KHz 1.7A 1.7A 8 4.7μH 122mΩ ±30% 2020 standard mounting,SMD mount 5mm*5mm*2mm

Other Names:VLCF5020T-4R7N1R7-1

more
VLCF5020T4R7N1R71
VLCF5020T-4R7N1R7-1

Manufacturer:TDK

Manufacturer Part:VLCF5020T-4R7N1R7-1

Email Document
ECAD Model:

In Stock

5 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.2712

Ext. Price (USD)

$0.27

Total price$0.27
MOQ1Mult1SPQ500DC2607+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.2712
$0.27
10
$0.2229
$2.22
50
$0.1893
$9.46
150
$0.1774
$26.61
500
$0.1669
$83.45
1,000
$0.1576
$157.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
4.7 µH
Inductance Frequency-Test
100 kHz
Q @ Freq
-
Current - Saturation (Isat)
1.7A
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
1.7 A
DC Resistance (DCR)
122mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.079" (2.00mm)
Package/Case
Nonstandard
Size / Dimension
0.197" L x 0.197" W (5.00mm x 5.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
1132633
Series
VLCF
Supplier Device Package
-
Tolerance
±30%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The TDK VLCF5020T-4R7N1R7-1 is documented as a power-circuit inductor. The manufacturer datasheet lists uses in portable equipment power sections, LCD displays, and other DC-DC converters. For circuit selection, check the 4.7 µH value, ±30% tolerance, 1.7 A Isat, 2.09 A Itemp, 0.122 Ω maximum DC resistance, and -40°C to 105°C operating range against the actual converter current, temperature rise, PCB layout, and manufacturer procurement specification.
