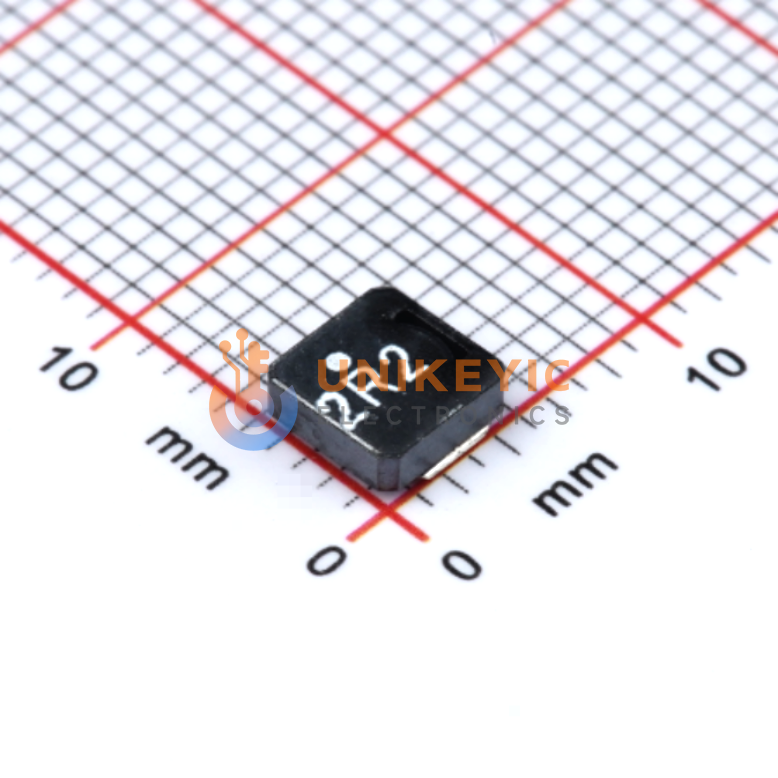

TDK VLCF5020T-2R2N2R6-1 image
Images are for reference only

VLCF5020T-2R2N2R6-1

100KHz 2.62A 2.62A 2.2μH 71mΩ ±30% 2020 standard mounting,SMD mount 5mm*5mm*2mm

Other Names:VLCF5020T-2R2N2R6-1

more
VLCF5020T2R2N2R61

Manufacturer:TDK

Manufacturer Part:VLCF5020T-2R2N2R6-1

Email Document
ECAD Model:

In Stock

3,976 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.1408

Ext. Price (USD)

$0.14

Total price$0.14
MOQ1Mult1SPQ500DC2439+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1408
$0.14
500
$0.1297
$64.85
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
2.2 µH
Inductance Frequency-Test
100 kHz
Q @ Freq
-
Current - Saturation (Isat)
2.62A
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
2.62 A
DC Resistance (DCR)
71mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.079" (2.00mm)
Package/Case
Nonstandard
Size / Dimension
0.197" L x 0.197" W (5.00mm x 5.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
1132845
Series
VLCF
Supplier Device Package
-
Tolerance
±30%
