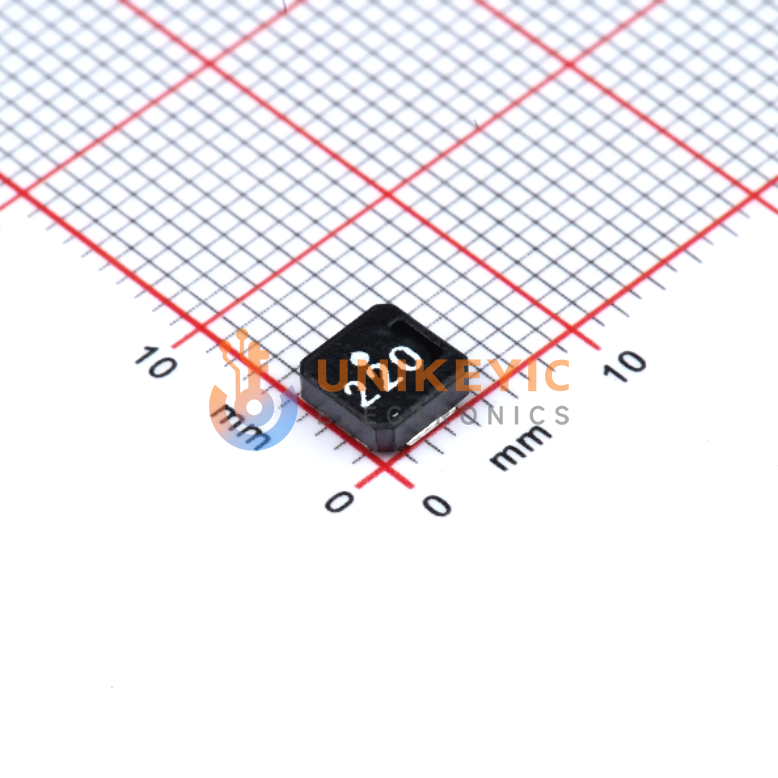

Images are for reference only
VLCF5020T-220MR75-1
100KHz 2.5MHz 750mA 750mA 8 22μH 496mΩ ±20% SMD SMD mount 5mm*5mm*2mm
Other Names:VLCF5020T-220MR75-1
more
VLCF5020T220MR751
VLCF5020T-220MR75-1
Manufacturer:TDK
Manufacturer Part:VLCF5020T-220MR75-1
Datasheet:TDK VLCF5020T-220MR75-1 Datasheet (PDF)
Email Document
In Stock
4,180 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.1465
Ext. Price (USD)
$0.73
Total price$0.73
MOQ5Mult5SPQ500DC2547+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1465
$0.14
500
$0.1345
$67.25
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | - |
| Inductance | 22 µH |
| Inductance Frequency-Test | 100 kHz |
| Q @ Freq | - |
| Current - Saturation (Isat) | 750mA |
| Operating Temperature | -40°C ~ 105°C |
| Current Rating (Amps) | 750 mA |
| DC Resistance (DCR) | 496mOhm Max |
| Material - Core | Ferrite |
| Height-Seated (Max) | 0.079" (2.00mm) |
| Package/Case | Nonstandard |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 1132852 |
| Series | VLCF |
| Supplier Device Package | - |
| Tolerance | ±20% |
