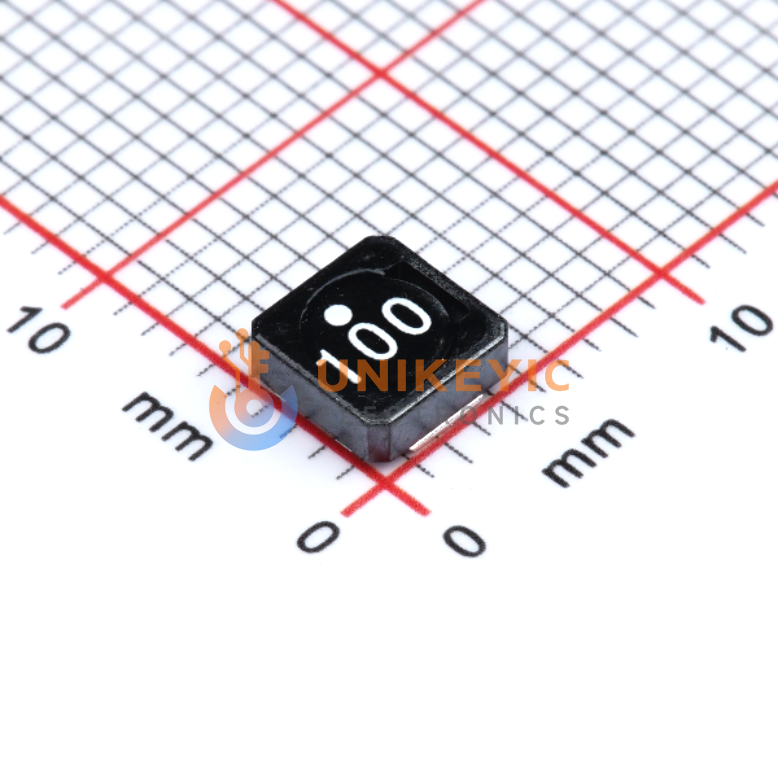

Images are for reference only
VLCF5020T-100M1R1-1
100KHz 1.13A 1.13A 10μH 237mΩ ±20% SMD SMD mount 5mm*5mm*2mm
Other Names:VLCF5020T-100M1R1-1
more
VLCF5020T100M1R11
VLCF5020T-100M1R1-1
Manufacturer:TDK
Manufacturer Part:VLCF5020T-100M1R1-1
Datasheet:TDK VLCF5020T-100M1R1-1 Datasheet (PDF)
Email Document
In Stock
16,126 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.3201
Ext. Price (USD)
$0.32
Total price$0.32
MOQ1Mult1SPQ500DC2532+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.3201
$0.32
10
$0.267
$2.67
30
$0.2331
$6.99
100
$0.2036
$20.36
500
$0.1833
$91.65
1,000
$0.1711
$171.10
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | - |
| Inductance | 10 µH |
| Inductance Frequency-Test | 100 kHz |
| Q @ Freq | - |
| Current - Saturation (Isat) | 1.13A |
| Operating Temperature | -40°C ~ 105°C |
| Current Rating (Amps) | 1.13 A |
| DC Resistance (DCR) | 237mOhm Max |
| Material - Core | Ferrite |
| Height-Seated (Max) | 0.079" (2.00mm) |
| Package/Case | Nonstandard |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 1132635 |
| Series | VLCF |
| Supplier Device Package | - |
| Tolerance | ±20% |
