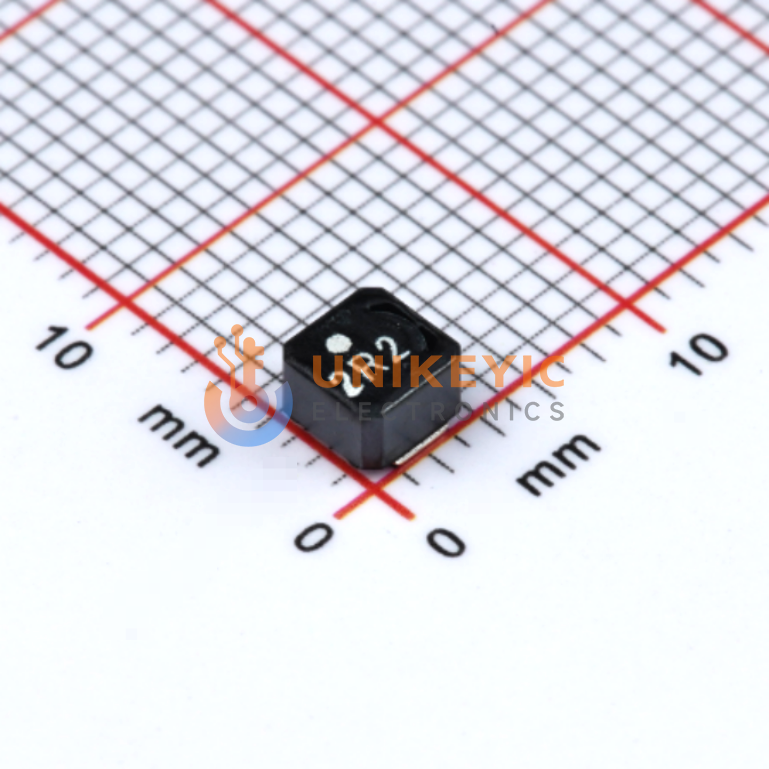

TDK VLCF4028T-2R2N1R9-2 image
Images are for reference only

VLCF4028T-2R2N1R9-2

100kHz 1.94A 1.94A 2.2μH 43mΩ ±30% 1515 Standard Mount, SMD 4mm × 4mm × 2.8mm Inductor

Other Names:VLCF4028T-2R2N1R9-2

more
VLCF4028T2R2N1R92

Manufacturer:TDK

Manufacturer Part:VLCF4028T-2R2N1R9-2

Email Document
ECAD Model:

In Stock

984 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.2565

Ext. Price (USD)

$0.25

Total price$0.25
MOQ1Mult1SPQ1,000DC2512+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.2565
$0.25
10
$0.2093
$2.09
30
$0.1825
$5.47
100
$0.1617
$16.17
500
$0.1471
$73.55
1,000
$0.1411
$141.10
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
2.2 µH
Inductance Frequency-Test
100 kHz
Q @ Freq
-
Current - Saturation (Isat)
1.94A
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
1.94 A
DC Resistance (DCR)
43mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.110" (2.80mm)
Package/Case
Nonstandard
Size / Dimension
0.157" L x 0.157" W (4.00mm x 4.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
2465853
Series
VLCF
Supplier Device Package
-
Tolerance
±30%
