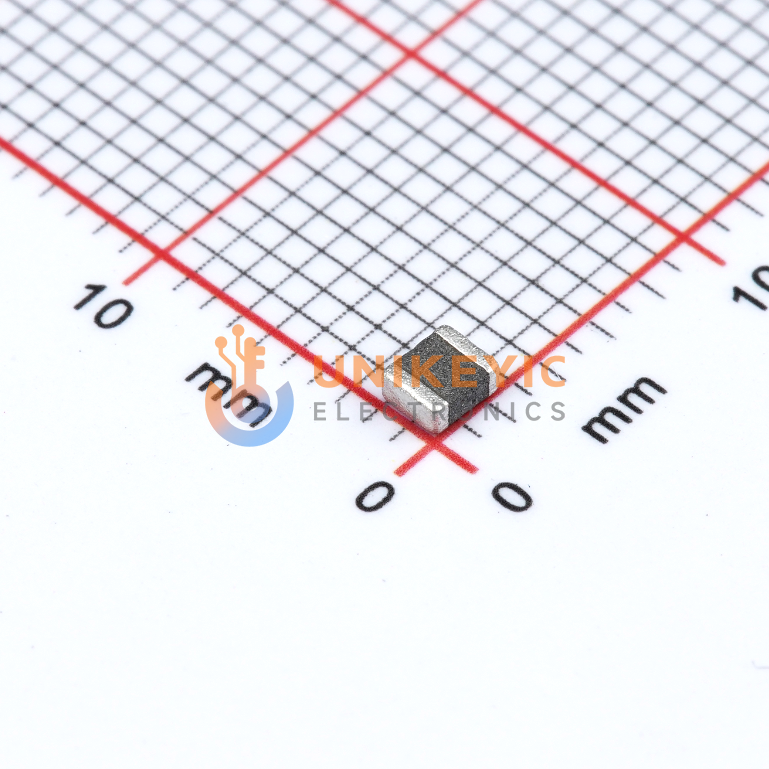

TDK TFM252012ALMA4R7MTAA image
Images are for reference only

TFM252012ALMA4R7MTAA

Inductor, 1MHz-2.5MHz 1.9A 1.6A 8-Pin 4.7μH 200mΩ ±20% 1008 SMD 2.5mm × 2mm × 1.2mm

Other Names:TFM252012ALMA4R7MTAA

more
TFM252012ALMA-4R7MTAA

Manufacturer:TDK

Manufacturer Part:TFM252012ALMA4R7MTAA

Email Document
ECAD Model:

In Stock

30,969 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.1582

Ext. Price (USD)

$0.15

Total price$0.15
MOQ1Mult1SPQ3,000DC2604+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.1582
$0.15
3,000
$0.1495
$448.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
4.7 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
1.9A
Operating Temperature
-55°C ~ 150°C
Current Rating (Amps)
1.6 A
DC Resistance (DCR)
200mOhm Max
Material - Core
Metal
Height-Seated (Max)
0.047" (1.20mm)
Package/Case
1008 (2520 Metric)
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Features
-
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
7795253
Series
TFM-ALMA
Supplier Device Package
1008 (2520 Metric)
Tolerance
±20%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The manufacturer datasheet lists TFM-ALMA series applications including ADAS ECU, automotive cameras such as view and sensing cameras, radar, instrument clusters, automotive communication modules, and other power-circuit uses. When selecting TDK TFM252012ALMA4R7MTAA for one of these applications, engineers should keep the documented 4.7 µH rating, current limits, DC resistance, package dimensions, temperature range, and AEC-Q200 rating aligned with the circuit requirements.
