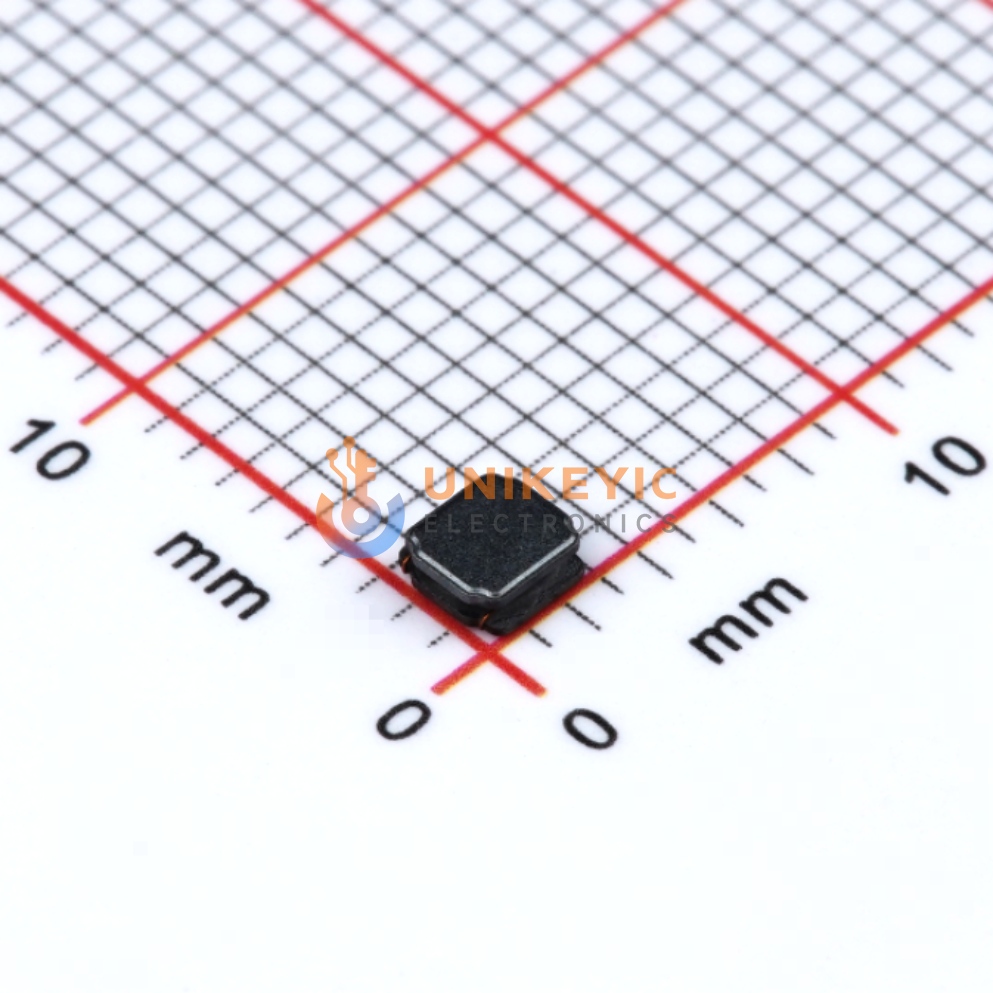

Images are for reference only
SPH3012H220MTY01
Fixed Inductor 22μH ±20% 0.50A 0.63Ω 1212
Other Names:SPH3012H220MTY01
Manufacturer:Sunlord
Manufacturer Part:SPH3012H220MTY01
Datasheet:Sunlord SPH3012H220MTY01 Datasheet (PDF)
Email Document
In Stock
23 In stock, ready to ship
Quantity
10
Unit Price (USD)
$0.0578
Ext. Price (USD)
$0.57
Total price$0.57
MOQ10Mult1SPQ2,000DC1928+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0578
$0.57
100
$0.0496
$4.96
300
$0.0434
$13.02
1,000
$0.0365
$36.50
5,000
$0.0347
$173.50
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | - |
| Inductance | 22 µH |
| Inductance Frequency-Test | 1 MHz |
| Q @ Freq | - |
| Current - Saturation (Isat) | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating (Amps) | 500 mA |
| DC Resistance (DCR) | 756mOhm Max |
| Material - Core | Ferrite |
| Packaging | Tape & Reel (TR) |
| Height-Seated (Max) | 0.047" (1.20mm) |
| Package/Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Shielded |
| Features | - |
| Mounting Type | Surface Mount |
| Ratings | - |
| Series | SPH |
| Supplier Device Package | - |
| Tolerance | ±20% |
