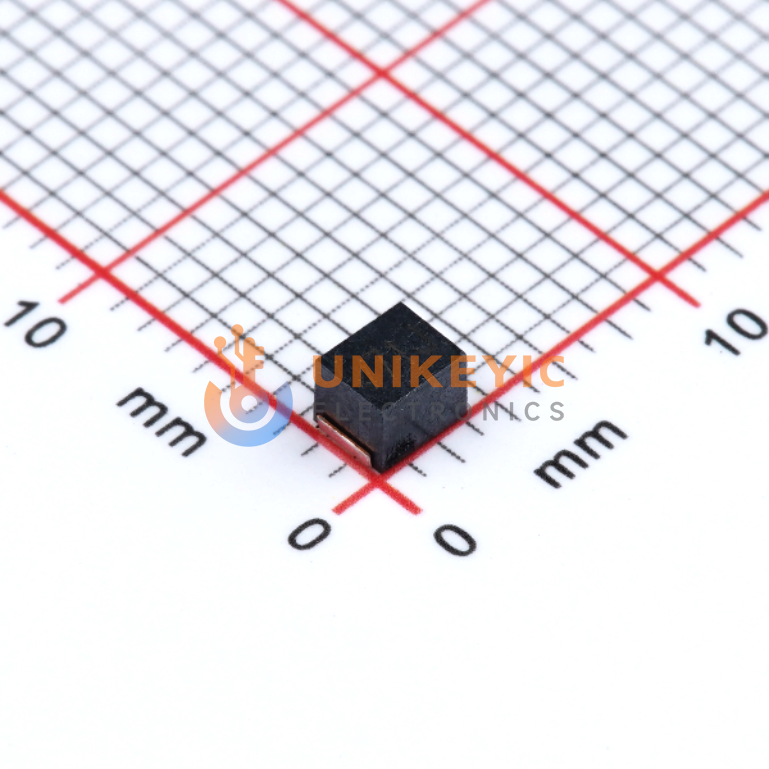

TDK NLV32T-471J-PF image
Images are for reference only

NLV32T-471J-PF

Ferrite Bead 470μH 40Ω ±5% 20@796kHz 25mA 796kHz-4MHz SMD 1210 3.2mm × 2.5mm × 2.4mm

Other Names:NLV32T-471J-PF

more
NLV32T471JPF

Manufacturer:TDK

Manufacturer Part:NLV32T-471J-PF

Email Document
ECAD Model:

In Stock

79,210 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0281

Ext. Price (USD)

$0.14

Total price$0.14
MOQ5Mult5SPQ2,000DC2508+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0281
$0.02
2,000
$0.0251
$50.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
4MHz
Inductance
470 µH
Inductance Frequency-Test
796 kHz
Q @ Freq
20 @ 796kHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
25 mA
DC Resistance (DCR)
40Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.094" (2.40mm)
Package/Case
1210 (3225 Metric)
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
571749
Series
NLV-PF
Supplier Device Package
1210
Tolerance
±5%
