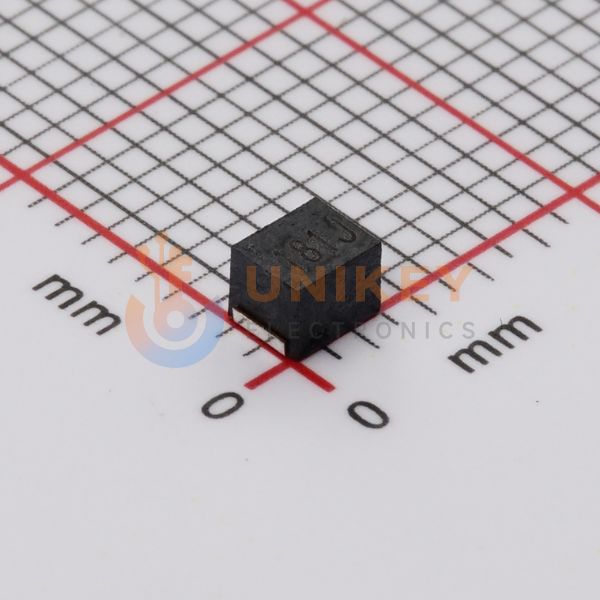

TDK NLV32T-181J-PF image
Images are for reference only

NLV32T-181J-PF

Ferrite Bead, SMD, 796kHz-7MHz, 60mA, 20Ω@796kHz, 180μH, 17Ω ±5%, 1210, 3.2mm × 2.5mm × 2.4mm

Other Names:NLV32T-181J-PF

more
NLV32T181JPF

Manufacturer:TDK

Manufacturer Part:NLV32T-181J-PF

Email Document
ECAD Model:

In Stock

3,999 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0497

Ext. Price (USD)

$0.24

Total price$0.24
MOQ5Mult1SPQ2,000DC2631+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0497
$0.24
50
$0.0405
$2.02
150
$0.0342
$5.13
500
$0.0309
$15.45
2,000
$0.0281
$56.20
4,000
$0.027
$108.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
7MHz
Inductance
180 µH
Inductance Frequency-Test
796 kHz
Q @ Freq
20 @ 796kHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
60 mA
DC Resistance (DCR)
17Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.094" (2.40mm)
Package/Case
1210 (3225 Metric)
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
5823112
Series
NLV-PF
Supplier Device Package
1210
Tolerance
±5%
