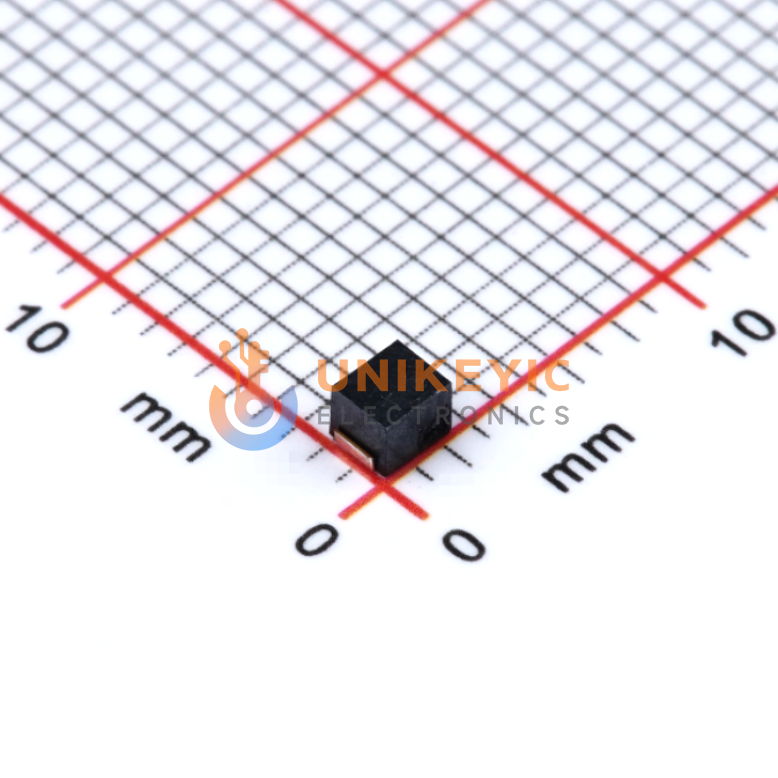

TDK NLV25T-R22J-PF image
Images are for reference only

NLV25T-R22J-PF

Inductor 25.2MHz-450MHz 430mA 30Ω@25.2MHz 220nH 500mΩ ±5% 1008 SMD 2.5mm × 2mm × 1.9mm

Other Names:NLV25TR22JPF

more
NLV25T-R22J-PF

Manufacturer:TDK

Manufacturer Part:NLV25T-R22J-PF

Email Document
ECAD Model:

In Stock

281 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0213

Ext. Price (USD)

$1.06

Total price$1.06
MOQ50Mult1SPQ2,000DC2213+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0213
$1.06
500
$0.0183
$9.15
1,500
$0.016
$24.00
5,000
$0.0135
$67.50
25,000
$0.0128
$320.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
450MHz
Inductance
220 nH
Inductance Frequency-Test
25.2 MHz
Q @ Freq
30 @ 25.2MHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
430 mA
DC Resistance (DCR)
500mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.075" (1.90mm)
Package/Case
1008 (2520 Metric)
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
600342
Series
NLV-PF
Supplier Device Package
1008 (2520 Metric)
Tolerance
±5%
