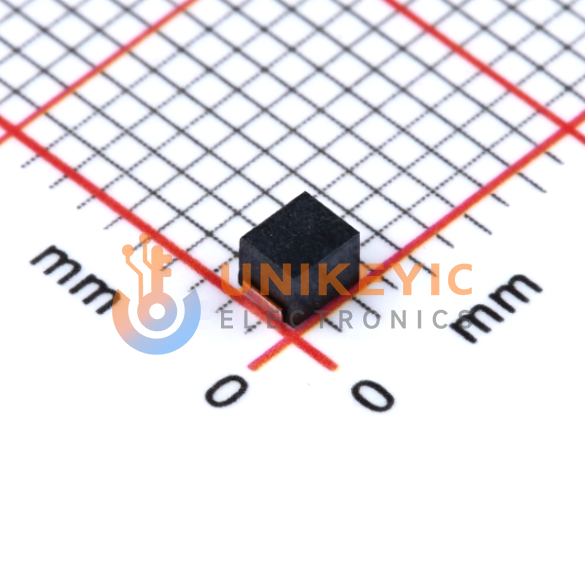

TDK NLV25T-220J-PF image
Images are for reference only

NLV25T-220J-PF

Ferrite Bead 2.52MHz-22MHz 125mA 25Ω@2.52MHz 22µH 5.5Ω ±5% 1008 SMD 2.5mm × 2mm × 1.9mm

Other Names:NLV25T-220J-PF

more
NLV25T220JPF

Manufacturer:TDK

Manufacturer Part:NLV25T-220J-PF

Email Document
ECAD Model:

In Stock

996 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0493

Ext. Price (USD)

$0.24

Total price$0.24
MOQ5Mult5SPQ2,000DC2626+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0493
$0.24
50
$0.0407
$2.03
150
$0.0347
$5.20
500
$0.0315
$15.75
2,000
$0.0288
$57.60
4,000
$0.0278
$111.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
22MHz
Inductance
22 µH
Inductance Frequency-Test
2.52 MHz
Q @ Freq
25 @ 2.52MHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
125 mA
DC Resistance (DCR)
5.5Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.075" (1.90mm)
Package/Case
1008 (2520 Metric)
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
666822
Series
NLV-PF
Supplier Device Package
1008 (2520 Metric)
Tolerance
±5%
